Kolektor ssący for BMW MINI R56 One (2008)

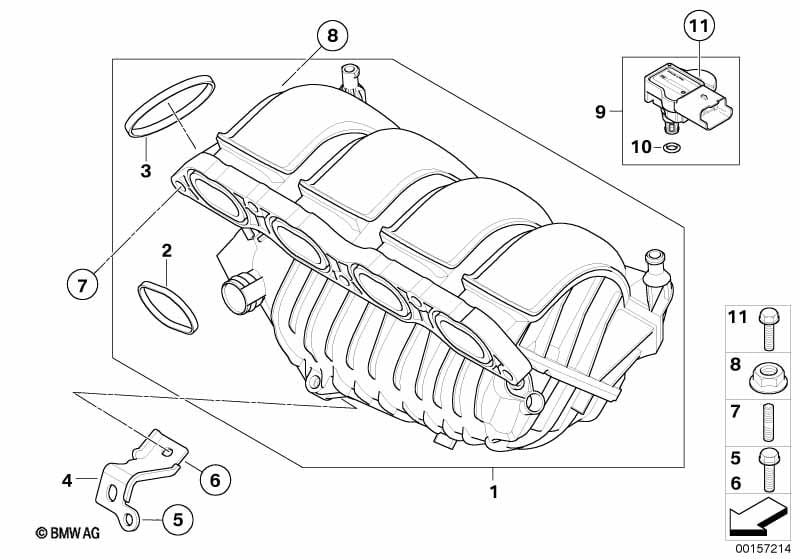

This Kolektor ssący technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kolektor ssący | 1 | 11617605733 | Shop at ECS Tuning | ||||||
| 02 | Uszczelka | 4 | 11617528173 | $2.38 | Shop at ECS Tuning | |||||
| 03 | Uszczelka | 1 | 11617528174 | $2.38 | Shop at ECS Tuning | |||||
| 04 | Wspornik kolektora ssącego | 1 | 11617569966 | $7.63 | Shop at ECS Tuning | |||||
| 05 | Śruba z podkładką | M6X20 | 1 | 07147543920 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Śruba z podkładką | M8X30 | 1 | 07147543380 | $0.91 | Shop at ECS Tuning | ||||
| 07 | Śruba dwustronna | M8 | 5 | 11627583110 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Nakrętka sześciokątna | M8 | 5 | 07/2024 | 07147543353 | $0.47 | Zakończono | Shop at ECS Tuning | ||
| 08 | Nakrętka z kołnierzem | M8-8-SC-ZNNIV | 5 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 09 | Czujnik różnicy ciśnienia | 1 | 13627539811 | $94.02 | Shop at ECS Tuning | |||||
| 10 | O-Ring | 7,59X2,62 | 1 | 13627567571 | $1.88 | Shop at ECS Tuning | ||||
| 11 | Śruba | 1 | 07147543416 | $0.36 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 One Kolektor ssący?
- This technical diagram illustrates the Kolektor ssący within the Silnik group for the MINI R56 One produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Kolektor ssący (Part #11617605733).
- Which models use the hardware listed in this Kolektor ssący?
- The hardware and components featured in the Kolektor ssący are specific to the MINI R56 One produced during 2008. These technical specifications ensure that parts like the Kolektor ssący (11617605733) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kolektor ssący assembly?
- Each item in the Kolektor ssący corresponds to the numbered list below the illustration. For the MINI R56 One, you can identify the Kolektor ssący by locating its position on the schematic, which then links to the official BMW part number 11617605733 for the Silnik section.
