Blok silnika for BMW 3 Series E92 LCI M3

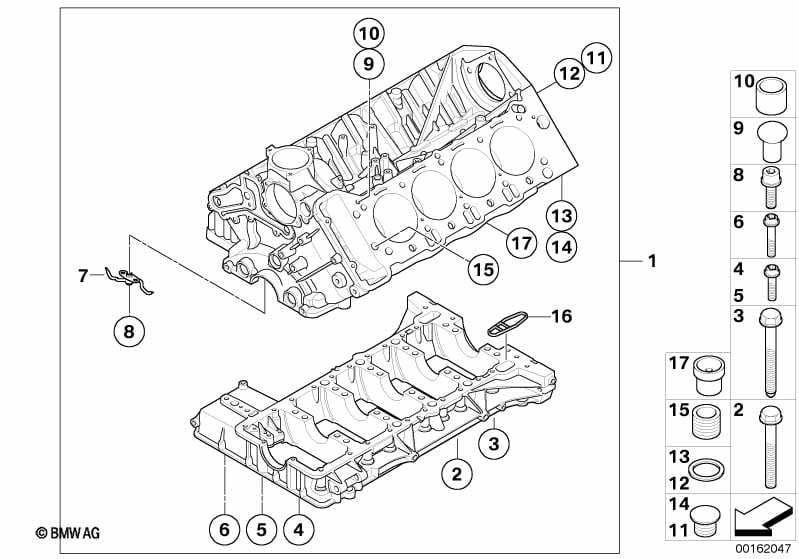

This Blok silnika technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI M3. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blok silnika z tłokami | 1 | 11110036844 | $9572.09 | +podst | Shop at ECS Tuning | ||||
| Konieczne do naprawy | ||||||||||
| -- | Uszczelnienie płynne Loctite 193140 | 6ML | 1 | 83190439030 | Shop at ECS Tuning | |||||
| -- | Primer Loctite 171000 | 4ML | 1 | 83197515683 | $11.90 | Shop at ECS Tuning | ||||
| 02 | Śruba z podkładką | M9X97 | 10 | 11117838986 | $3.17 | Shop at ECS Tuning | ||||
| 03 | Śruba z kołnierzem | M11X115 | 10 | 11117834141 | $4.00 | Shop at ECS Tuning | ||||
| 04 | Śruba ISA | M6X30-10.9 | 2 | 07129905795 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Śruba ISA | M8X40-10.9 | 4 | 07129905793 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Śruba ISA | M8X65-10.9 | 22 | 07129905794 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Dysza wtrysku oleju | 4 | 11117837298 | $15.22 | Shop at ECS Tuning | |||||
| 08 | Śruba z łbem walcowym | M5X12-U1-ZNFESI | 8 | 07119902815 | $0.65 | Shop at ECS Tuning | ||||
| 09 | Zawór zwrotny | 2 | 11111734667 | $11.15 | Shop at ECS Tuning | |||||
| 10 | Tuleja dystansowa | 2 | 11111739185 | $3.60 | Shop at ECS Tuning | |||||
| 11 | Śruba zamykająca | M16X1,5 | 1 | 07119902292 | $2.83 | Shop at ECS Tuning | ||||
| 12 | Pierścień uszczelniający | A16X20-AL | 1 | 07119963252 | $0.57 | Shop at ECS Tuning | ||||
| 13 | Pierścień uszczelniający | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Śruba zamykająca | M14X1,5-ST-ZNS3 | 2 | 07119904392 | $2.08 | Shop at ECS Tuning | ||||
| 15 | Śruba zamykająca | M14X1,5 | 4 | 11127519566 | $3.10 | Shop at ECS Tuning | ||||
| 16 | Uszczelka | 1 | 11117838015 | $3.56 | Shop at ECS Tuning | |||||
| 17 | Wtryskiwacz | 2 | 11117506546 | $3.60 | Shop at ECS Tuning | |||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
