Napęd pasowy pompy wody/prądnicy for BMW 5 Series E39 520d

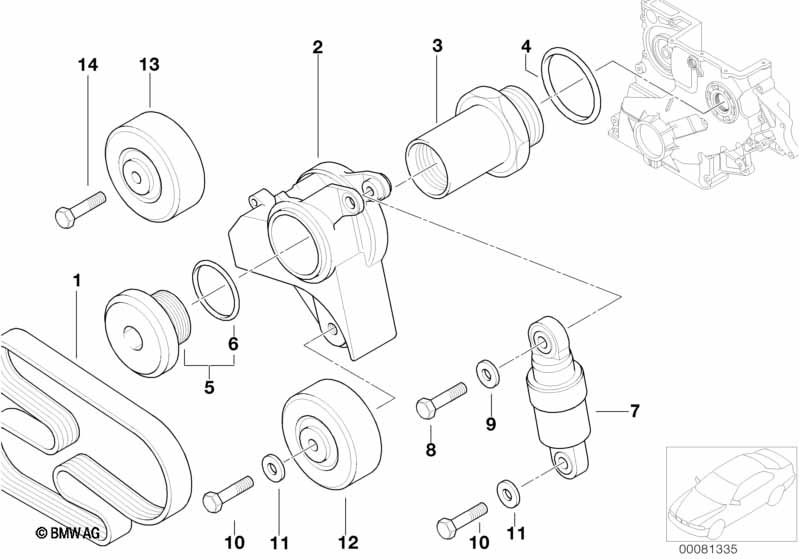

This Napęd pasowy pompy wody/prądnicy technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pasek wieloklinowy | 5PK X 2030 | 1 | 11288477781 | Shop at ECS Tuning | |||||
| 02 | Dźwignia kierunkowa | 1 | 11282247175 | Shop at ECS Tuning | ||||||
| 03 | Sworzeń łożyskowy | 1 | 11282243506 | $28.13 | Shop at ECS Tuning | |||||
| 04 | O-Ring | 35,2X3 | 1 | 13321288696 | $1.88 | Shop at ECS Tuning | ||||
| 05 | Śruba zamykająca | M35X2 | 1 | 11282243508 | $12.63 | Shop at ECS Tuning | ||||
| 06 | O-Ring | 28X2 | 1 | 11121304174 | $3.25 | Shop at ECS Tuning | ||||
| 07 | Napinacz hydrauliczny | 1 | 11282248169 | $101.95 | Shop at ECS Tuning | |||||
| 08 | Śruba sześciokątna | M8X32-ZNS | 1 | 07119900902 | $0.78 | Shop at ECS Tuning | ||||
| 09 | Podkładka | 8,4X18X2MM | 1 | 07149180923 | Shop at ECS Tuning | |||||
| 10 | Śruba sześciokątna | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 11 | Podkładka | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Rolka napinająca | 1 | 11282244754 | $45.97 | Shop at ECS Tuning | |||||
| 13 | Rolka | 1 | 11282247435 | $46.39 | Shop at ECS Tuning | |||||
| 14 | Śruba z łbem walcowym | M8X35 ZNS | 1 | 07119901027 | $1.22 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 520d Napęd pasowy pompy wody/prądnicy?
- This technical diagram illustrates the Napęd pasowy pompy wody/prądnicy within the Silnik group for the 5 Series E39 520d. It provides a detailed exploded view of the components, identifying key parts such as the Pasek wieloklinowy (Part #11288477781).
- Which models use the hardware listed in this Napęd pasowy pompy wody/prądnicy?
- The hardware and components featured in the Napęd pasowy pompy wody/prądnicy are specific to the 5 Series E39 520d. These technical specifications ensure that parts like the Pasek wieloklinowy (11288477781) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Napęd pasowy pompy wody/prądnicy assembly?
- Each item in the Napęd pasowy pompy wody/prądnicy corresponds to the numbered list below the illustration. For the 5 Series E39 520d, you can identify the Pasek wieloklinowy by locating its position on the schematic, which then links to the official BMW part number 11288477781 for the Silnik section.
