Ster. zaw.-wałek mimośr.,silnik nast. for BMW 7 Series G70 750eX (2021)

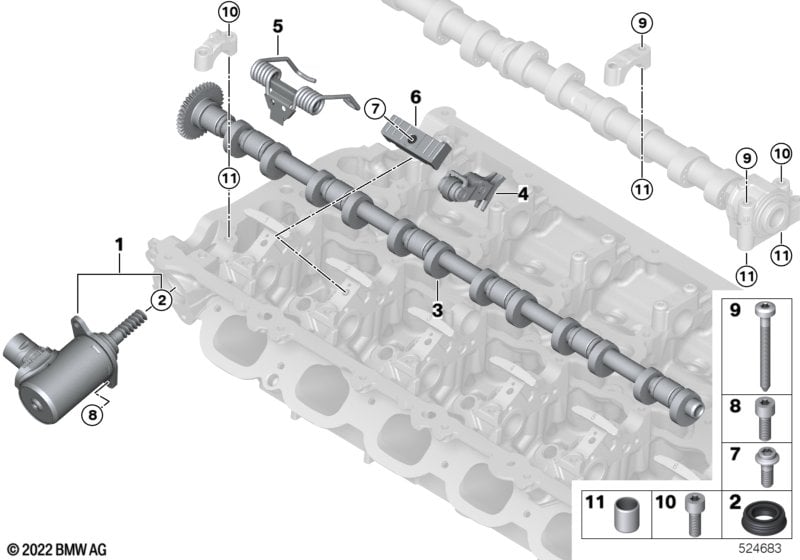

This Ster. zaw.-wałek mimośr.,silnik nast. technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Siłownik | 1 | 11377643073 | Shop at ECS Tuning | ||||||
| 02 | Pierścień uszczelniający | 1 | 11378662525 | Shop at ECS Tuning | ||||||
| 03 | Wałek mimośrodowy | 1 | 11379494049 | Shop at ECS Tuning | ||||||
| 04 | Dźwignia pośrednia (kontur L) | "0" | 12 | 11379494056 | Shop at ECS Tuning | |||||
| 04 | Dźwignia pośrednia (kontur L) | "1" | 12 | 11379494057 | Shop at ECS Tuning | |||||
| 04 | Dźwignia pośrednia (kontur L) | "2" | 12 | 11379494058 | Shop at ECS Tuning | |||||
| 04 | Dźwignia pośrednia (kontur L) | "3" | 12 | 11379494059 | Shop at ECS Tuning | |||||
| 04 | Dźwignia pośrednia (kontur L) | "4" | 12 | 11379494060 | Shop at ECS Tuning | |||||
| 04 | Dźwignia pośrednia (kontur L) | "5" | 12 | 11379494061 | Shop at ECS Tuning | |||||
| 05 | Sprężyna skrętna (kontur L) | 6 | 11379494053 | Shop at ECS Tuning | ||||||
| 06 | Wspornik | 6 | 11378652133 | Shop at ECS Tuning | ||||||
| 07 | Śruba pasowana | M7X35 | 6 | 11377640915 | Shop at ECS Tuning | |||||
| 08 | Śruba ISA | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Śruba z łbem wpuszczanym | M6X65-10.9 | 13 | 07149844207 | Shop at ECS Tuning | |||||
| 10 | Śruba z łbem wpuszczanym | M6X35-10.9 | 10 | 07119909683 | Shop at ECS Tuning | |||||
| 11 | Tulejka pasowana | D=7,5MM | 17 | 11127606504 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 750eX Ster. zaw.-wałek mimośr.,silnik nast.?
- This technical diagram illustrates the Ster. zaw.-wałek mimośr.,silnik nast. within the Silnik group for the 7 Series G70 750eX produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Siłownik (Part #11377643073).
- Which models use the hardware listed in this Ster. zaw.-wałek mimośr.,silnik nast.?
- The hardware and components featured in the Ster. zaw.-wałek mimośr.,silnik nast. are specific to the 7 Series G70 750eX produced during 2021. These technical specifications ensure that parts like the Siłownik (11377643073) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ster. zaw.-wałek mimośr.,silnik nast. assembly?
- Each item in the Ster. zaw.-wałek mimośr.,silnik nast. corresponds to the numbered list below the illustration. For the 7 Series G70 750eX, you can identify the Siłownik by locating its position on the schematic, which then links to the official BMW part number 11377643073 for the Silnik section.
