Skrzynka sterowników for BMW 7 Series E65 745i (2003)

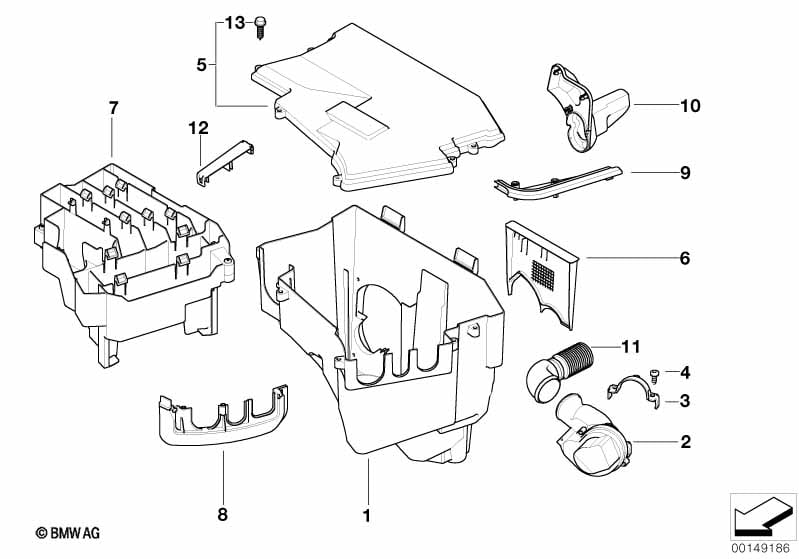

This Skrzynka sterowników technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Skrzynka elektryczna z wentylacją | 1 | 12907571020 | $135.41 | Shop at ECS Tuning | |||||
| 01 | Skrzynka elektryczna bez wentylacji | 1 | 12907527606 | $57.43 | Shop at ECS Tuning | |||||
| 02 | Wentylator skrzynki elektrycznej | 1 | 12901438062 | $144.83 | Shop at ECS Tuning | |||||
| 03 | Obejma | 1 | 06/2003 | 12907511587 | $1.90 | Shop at ECS Tuning | ||||
| 04 | Śruba do termolastycznych tw. sztucz. | M5X12 | 2 | 07129904293 | $1.05 | Shop at ECS Tuning | ||||
| 05 | Pokrywa skrzynki urz. elektron. | 1 | 12901714090 | $29.14 | Shop at ECS Tuning | |||||
| 06 | Pokrywa z wentylacją | 1 | 12907525316 | $5.30 | Shop at ECS Tuning | |||||
| 06 | Pokrywa bez wentylacji | 1 | 12907525317 | $3.47 | Shop at ECS Tuning | |||||
| 07 | Podstawa sterownika | 1 | 12907570073 | $18.54 | Shop at ECS Tuning | |||||
| 08 | Uszczelka dolnej części | 1 | 12527510648 | $8.72 | Shop at ECS Tuning | |||||
| 09 | Uszczelka górnej części | 1 | 12527510703 | $8.43 | Shop at ECS Tuning | |||||
| 13 | Śruba do termolastycznych tw. sztucz. | 6 | 12901438016 | $1.12 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Skrzynka sterowników?
- This technical diagram illustrates the Skrzynka sterowników within the Silnik- elektryka group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Skrzynka elektryczna z wentylacją (Part #12907571020).
- Which models use the hardware listed in this Skrzynka sterowników?
- The hardware and components featured in the Skrzynka sterowników are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Skrzynka elektryczna z wentylacją (12907571020) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Skrzynka sterowników assembly?
- Each item in the Skrzynka sterowników corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Skrzynka elektryczna z wentylacją by locating its position on the schematic, which then links to the official BMW part number 12907571020 for the Silnik- elektryka section.
