Przewód akumulatora / rozrusznika for BMW 7 Series E65 745i (2003)

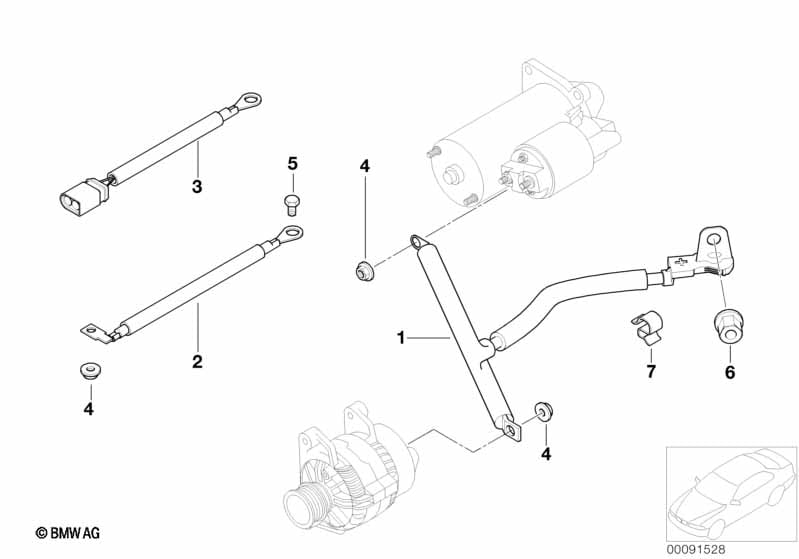

This Przewód akumulatora / rozrusznika technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód alternator-rozrusznik | 1 | 12427510441 | $209.00 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 01 | Kabel alternator-rozrusznik-wyprow B+ | 1 | 09/2003 | 12427525677 | $205.23 | Shop at ECS Tuning | ||||
| 02 | Taśma uziemiająca | 1 | 12427518610 | $14.88 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Nakrętka | M8 | 1 | 12528576285 | Shop at ECS Tuning | |||||
| 05 | Śruba sześciokątna | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 06 | Nakrętka samozabezp. z kołnierzem | M8-8-ZNS3 | 1 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Nakrętka samozabezp. z kołnierzem | M8-10 ZNS3 | 1 | 07119905374 | Shop at ECS Tuning | |||||
| 07 | Zacisk przewodu | 1 | 03/2025 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 07 | Zaczep | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Przewód akumulatora / rozrusznika?
- This technical diagram illustrates the Przewód akumulatora / rozrusznika within the Silnik- elektryka group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Przewód alternator-rozrusznik (Part #12427510441).
- Which models use the hardware listed in this Przewód akumulatora / rozrusznika?
- The hardware and components featured in the Przewód akumulatora / rozrusznika are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Przewód alternator-rozrusznik (12427510441) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Przewód akumulatora / rozrusznika assembly?
- Each item in the Przewód akumulatora / rozrusznika corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Przewód alternator-rozrusznik by locating its position on the schematic, which then links to the official BMW part number 12427510441 for the Silnik- elektryka section.
