Elementy mocujące prądnicy for BMW 7 Series E65 745i (2003)

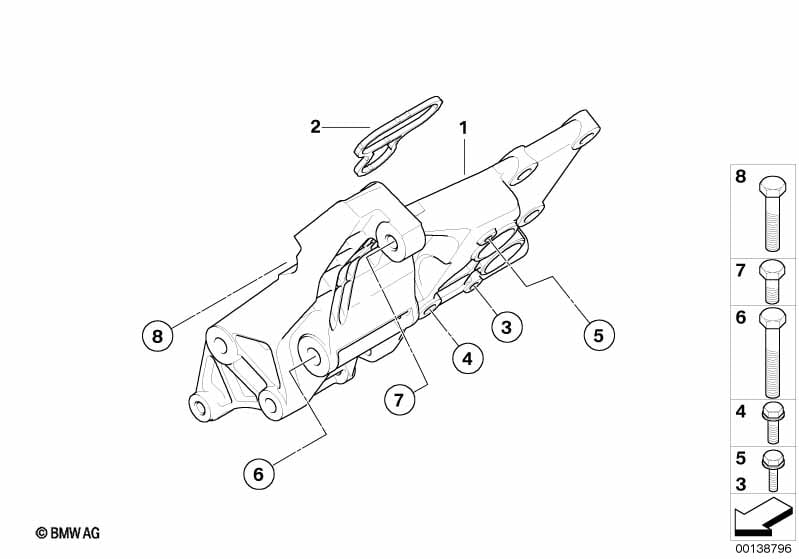

This Elementy mocujące prądnicy technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wspornik alternatora | 1 | 12317533840 | $105.83 | Shop at ECS Tuning | |||||
| pasuje tylko do chłodnicy oleju |
||||||||||
| 01 | Wspornik alternatora | 1 | 12317533837 | $105.83 | Shop at ECS Tuning | |||||
| 02 | Uszczelka | 1 | 12317507807 | $1.20 | Shop at ECS Tuning | |||||
| Dla samochodów z Wersja krajowa Golf i Automatyczna skrzynia biegów pasuje tylko do chłodnicy oleju |
L822A=Tak S205A=Nie |
|||||||||
| 02 | Uszczelka | 1 | 12317507808 | $1.48 | Shop at ECS Tuning | |||||
| 03 | Śruba z podkładką | M8X30-ZNNIV SI | 1 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 04 | Śruba z podkładką | M10X35-U1 | 1 | 07119906140 | $1.27 | Shop at ECS Tuning | ||||
| 06 | Śruba z podkładką | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning | ||||
| 07 | Śruba sześciokątna | M10X65 | 1 | 07119904512 | $2.56 | Shop at ECS Tuning | ||||
| 08 | Śruba ISA z podkładką | M8X80 | 1 | 09/2003 | 07129905113 | $3.41 | Shop at ECS Tuning | |||
