Zawory i przewody instalacji wtryskowej for BMW 7 Series E23 745i

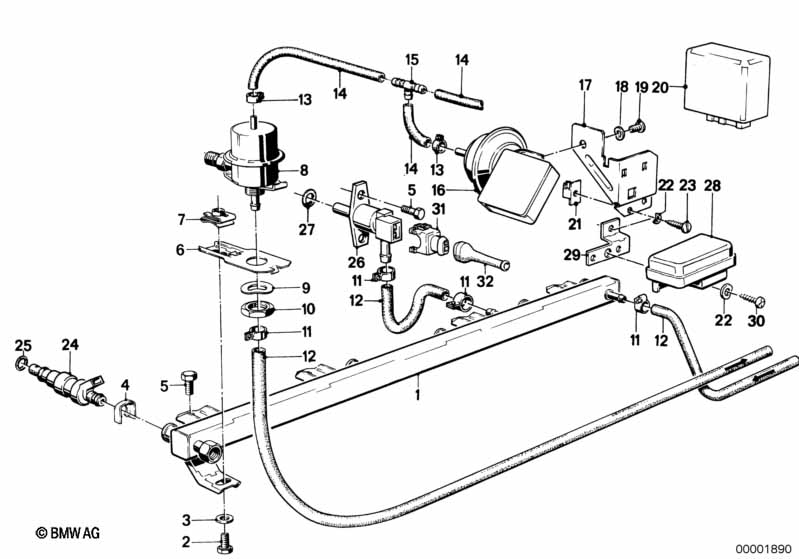

This Zawory i przewody instalacji wtryskowej technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód wtryskowy | 1 | 05/1983 | 13531274732 | $305.06 | Shop at ECS Tuning | ||||
| 01 | Przewód wtryskowy | 1 | 05/1983 | 13531717071 | $360.66 | Shop at ECS Tuning | ||||
| 02 | Śruba sześciokątna | M6X10-8.8-ZNS3 | 1 | 05/1983 | 07119904633 | $0.20 | Shop at ECS Tuning | |||
| 02 | Śruba z podkładką | M6X12-Z3-1 | 2 | 05/1983 | 07119915033 | $1.07 | Shop at ECS Tuning | |||
| 03 | Podkładka | A6,4-ZNNIV SI | 1 | 05/1983 | 07119904202 | Shop at ECS Tuning | ||||
| 04 | Klamra | 6 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 05 | Śruba sześciokątna | M6X14-ZNNIV SI | 4 | 09/1981 | 07119905964 | Shop at ECS Tuning | ||||
| 06 | Uchwyt | 1 | 05/1983 | 13531274547 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Nakrętka | M6 | 1 | 05/1983 | 07147133884 | $0.36 | Shop at ECS Tuning | |||
| 08 | Regulator ciśnienia | 2,5BAR | 1 | 05/1983 | 13531276028 | $101.68 | Shop at ECS Tuning | |||
| 08 | Regulator ciśnienia | 2,5BAR | 1 | 05/1983 | 13531722039 | $157.53 | Zakończono | Shop at ECS Tuning | ||
| 08 | Regulator ciśnienia | 2,5BAR | 1 | 05/1983 | 13531711540 | $46.02 | Shop at ECS Tuning | |||
| 08 | Regulator ciśnienia | 2,5BAR | 1 | 05/1983 | 13531711540 | $46.02 | Shop at ECS Tuning | |||
| 09 | Podkładka sprężysta | B16 | 1 | 05/1983 | 07119932162 | $0.24 | Shop at ECS Tuning | |||
| 10 | Nakrętka sześciokątna | M16X1,5-04-ZNS | 1 | 05/1983 | 07119901307 | $1.80 | Shop at ECS Tuning | |||
| 11 | Opaska na węże | L12-15 | 3 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Przewód paliwowy elastyczny | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 13 | Opaska na węże | L=9-12 | 5 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 14 | Przewód paliwowy elastyczny | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 15 | Trójnik | 1 | 09/1981 | 13320680050 | $2.23 | Shop at ECS Tuning | ||||
| 16 | Włącznik ciśnieniowy | 1 | 09/1981 | 13631274661 | $146.20 | Zakończono | Shop at ECS Tuning | |||
| 17 | Uchwyt | 1 | 09/1981 | 13631274668 | Zakończono | Shop at ECS Tuning | ||||
| 18 | Podkładka sprężysta czarna | B6-ZN | 1 | 09/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 18 | Podkładka | 5.3-140 HV-ZNS | 1 | 09/1981 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 18 | Podkładka sprężysta | B6-ZNS3 | 1 | 09/1981 | 07119904496 | $1.78 | Zakończono | Shop at ECS Tuning | ||
| 19 | Śruba soczewkowa | M6X10 | 1 | 09/1981 | 07119907646 | $0.40 | Shop at ECS Tuning | |||
| 20 | Przekaźnik przeł. prędkości obrotowej | 1 | 09/1981 | 13631274662 | $242.12 | Zakończono | Shop at ECS Tuning | |||
| 20 | Przekaźnik przeł. prędkości obrotowej | 1 | 09/1981 | 05/1983 | 13631279527 | $220.97 | Shop at ECS Tuning | |||
| 21 | Skrzynka Prestol | ST4,8 | 1 | 05/1983 | 07129925765 | $0.18 | Zakończono | Shop at ECS Tuning | ||
| 21 | Nakrętka | M5 | 1 | 05/1983 | 46637651465 | $1.29 | Shop at ECS Tuning | |||
| 22 | Podkładka sprężysta | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 23 | Wkręt samogwintujący | ST4,8X16 Z2 | 2 | 05/1983 | 07119907789 | $0.13 | Zakończono | Shop at ECS Tuning | ||
| 23 | Wkręt samogwintujący | ST4,8X13 | 1 | 05/1983 | 07119907786 | $0.11 | Shop at ECS Tuning | |||
| 24 | Wtryskiwacz | 6 | 13641273270 | $155.86 | Zakończono | Shop at ECS Tuning | ||||
| 25 | O-Ring | 7,52X3,53 | X | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 26 | Zawór rozruchowy | 1 | 13641358917 | $106.30 | Shop at ECS Tuning | |||||
| 27 | O-Ring | 6,3X2,4 | 1 | 07119903045 | $1.67 | Shop at ECS Tuning | ||||
| 28 | Czujnik ciśnienia | 1 | 05/1983 | 13621286679 | $167.72 | Shop at ECS Tuning | ||||
| 29 | Uchwyt | 1 | 05/1983 | 13621286709 | Zakończono | Shop at ECS Tuning | ||||
| 30 | Blachowkręt | ST4,8X9,5-C-H-Z | 1 | 05/1983 | 07119901200 | $0.17 | Shop at ECS Tuning | |||
| 31 | Obudowa wtyczki | 2 POL. | 7 | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 32 | Osłonka | L=12,5MM | 7 | 61131358330 | $5.33 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
