Filtr paliwa/Regulator ciśnienia for BMW 3 Series E46 M3

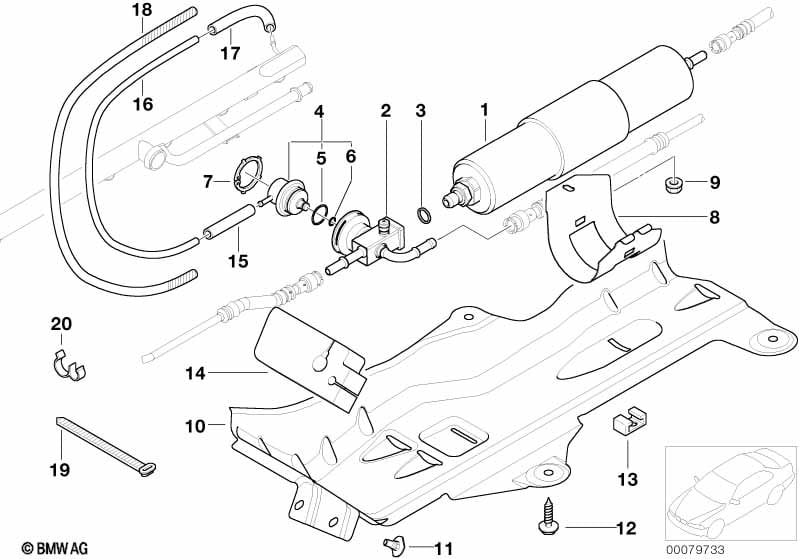

This Filtr paliwa/Regulator ciśnienia technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtr paliwa | 1 | 13327831089 | $58.74 | Shop at ECS Tuning | |||||
| 02 | Obudowa regulatora ciśnienia | 1 | 13537830368 | $113.73 | Shop at ECS Tuning | |||||

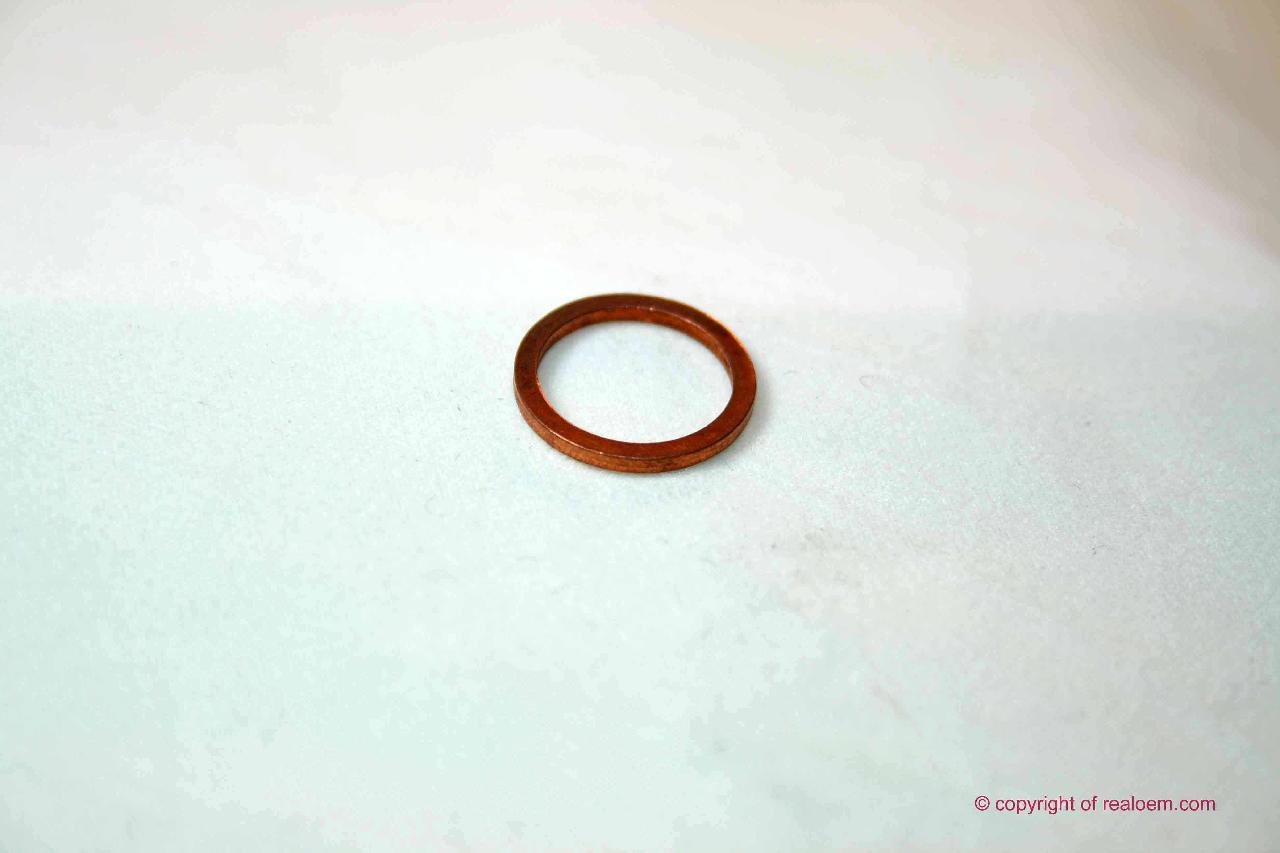

| 03 | Pierścień uszczelniający | A12X15-CU | 1 | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Regulator ciśnienia | 1 | 13531404089 | $75.10 | Shop at ECS Tuning | |||||
| 05 | O-Ring | 20X2,5 | 1 | 13531720251 | $4.38 | Shop at ECS Tuning | ||||
| 06 | O-Ring | 5X1,5 | 1 | 13531720252 | $3.75 | Shop at ECS Tuning | ||||
| 07 | Pierścień zabezpieczający | 1 | 13531736234 | $2.12 | Shop at ECS Tuning | |||||
| 08 | Uchwyt filtra paliwa | D=55MM | 1 | 13321435583 | $16.33 | Shop at ECS Tuning | ||||
| 09 | Nakrętka z podkładką | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Osłona filtra paliwa | 1 | 13328230397 | $22.38 | Shop at ECS Tuning | |||||
| 10 | Osłona filtra paliwa | 1 | 13325A5EA65 | Shop at ECS Tuning | ||||||
| 11 | Nakrętka sześciokątna z kołnierzem | 2 | 07147154227 | $0.62 | Shop at ECS Tuning | |||||
| 12 | Śruba z łbem sześciokątnym z podkł. | ST4,8X16MM | 3 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Skrzynka Prestol | ST4,8-2 | 3 | 07129904323 | $0.27 | Shop at ECS Tuning | ||||
| 14 | Element uszczelniający | 1 | 13327830949 | $3.17 | Shop at ECS Tuning | |||||
| 15 | Przewód elast. podciśnien. niebieski | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 16 | Przewód elastyczny podciśnieniowy | 2X4 | X | 64111368684 | $1.77 | Shop at ECS Tuning | ||||
| 17 | Przewód kształtowany | 1 | 11727837591 | $9.07 | Shop at ECS Tuning | |||||
| 18 | Rura falista | Ø 4,5MM | X | 12517508831 | $3.52 | Shop at ECS Tuning | ||||
| 19 | Opaska kablowa | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 20 | Zacisk przewodu | 4 | 61131365412 | $0.50 | Shop at ECS Tuning |
