Przepływomierz powietrza for BMW 7 Series E65 745i (2003)

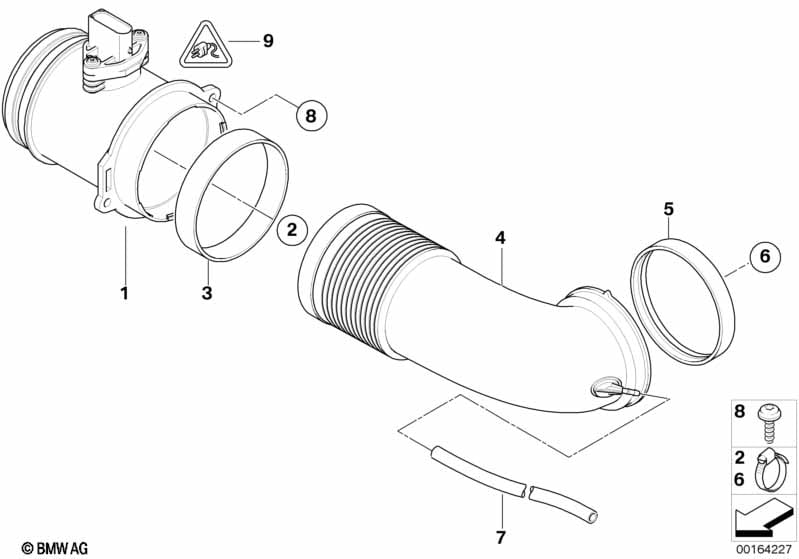

This Przepływomierz powietrza technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przepływomierz powietrza | 1 | 09/2003 | 13627566988 | $402.32 | Shop at ECS Tuning | ||||
| 02 | Opaska na węże | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 04 | Osłona gumowa | 1 | 09/2003 | 13717531799 | $37.87 | Shop at ECS Tuning | ||||
| 06 | Opaska na węże | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 07 | Przewód elastyczny | 1 | 13717577758 | $5.50 | Shop at ECS Tuning | |||||
| 08 | Śruba do termolastycznych tw. sztucz. | 60X20 | 2 | 09/2003 | 11/2006 | 13627527810 | $0.52 | Shop at ECS Tuning | ||
| 08 | Śruba do termolastycznych tw. sztucz. | 60X22 | 2 | 09/2003 | 13627805193 | $0.53 | Shop at ECS Tuning | |||
| 09 | Obudowa wtyczki | 5 POLIG | 1 | 12521433204 | $3.52 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Jack SLK 2.8 ELA with cable | 0,2- 0,5MM²/AG | 5 | 12520143427 | $2.03 | Shop at ECS Tuning | ||||
| -- | Jack SLK 2.8 ELA with cable | 0,5- 1,0 MM²/AG | 5 | 12520143433 | $4.00 | Shop at ECS Tuning | ||||
| -- | Końcówka | 1 | 12521707749 | $3.47 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Przepływomierz powietrza?
- This technical diagram illustrates the Przepływomierz powietrza within the Mieszanka paliwowa group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Przepływomierz powietrza (Part #13627566988).
- Which models use the hardware listed in this Przepływomierz powietrza?
- The hardware and components featured in the Przepływomierz powietrza are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Przepływomierz powietrza (13627566988) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Przepływomierz powietrza assembly?
- Each item in the Przepływomierz powietrza corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Przepływomierz powietrza by locating its position on the schematic, which then links to the official BMW part number 13627566988 for the Mieszanka paliwowa section.
