Tłumik szmerów ssania/wkład filtra for BMW 7 Series E65 745i (2003)

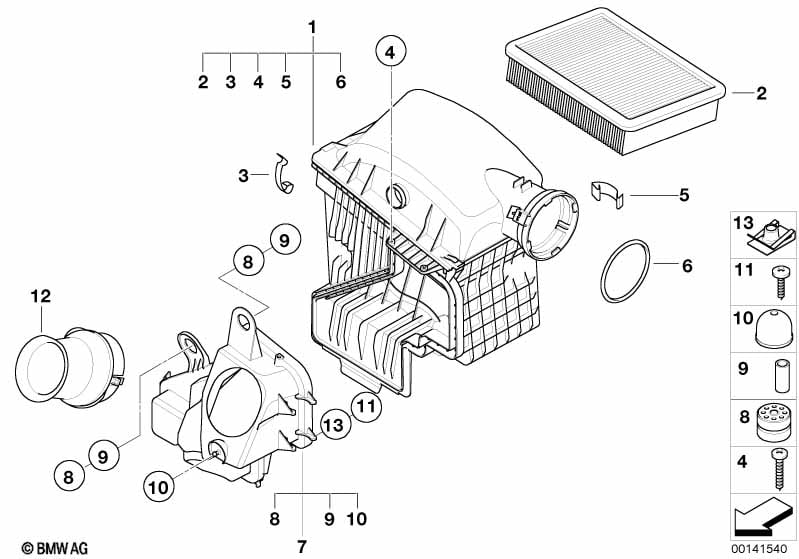

This Tłumik szmerów ssania/wkład filtra technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtr powietrza | 1 | 09/2003 | 13717531864 | $300.56 | Shop at ECS Tuning | ||||
| 02 | Wkład filtra powietrza | 1 | 13717505007 | $47.14 | Shop at ECS Tuning | |||||
| 03 | Zaczep sprężynowy | L=42MM | 2 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| 04 | Śruba do termolastycznych tw. sztucz. | NS-TS5X20-ZNS3 | 2 | 07129904960 | $1.53 | Shop at ECS Tuning | ||||
| 06 | O-Ring | 91X6MM | 1 | 13711731893 | $4.38 | Shop at ECS Tuning | ||||
| 07 | Obudowa na pow. nieoczyszczone prawa | 1 | 13717571984 | $49.92 | Shop at ECS Tuning | |||||
| 08 | Końcówka gumowa | 2 | 13711742771 | $4.36 | Shop at ECS Tuning | |||||
| 09 | Tuleja dystansowa | 2 | 13717571982 | $1.93 | Shop at ECS Tuning | |||||
| 10 | Odbojnik gumowy | 1 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 11 | Śruba soczewkowa | 2 | 07149141775 | $0.25 | Shop at ECS Tuning | |||||
| 12 | Kanał dolotowy | 1 | 13717501195 | $34.20 | Shop at ECS Tuning | |||||
| 13 | nakrętka C-Clip | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Tłumik szmerów ssania/wkład filtra?
- This technical diagram illustrates the Tłumik szmerów ssania/wkład filtra within the Mieszanka paliwowa group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Filtr powietrza (Part #13717531864).
- Which models use the hardware listed in this Tłumik szmerów ssania/wkład filtra?
- The hardware and components featured in the Tłumik szmerów ssania/wkład filtra are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Filtr powietrza (13717531864) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tłumik szmerów ssania/wkład filtra assembly?
- Each item in the Tłumik szmerów ssania/wkład filtra corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Filtr powietrza by locating its position on the schematic, which then links to the official BMW part number 13717531864 for the Mieszanka paliwowa section.
