Zawór odpow. zbiornika paliwa for BMW 7 Series E65 745i (2003)

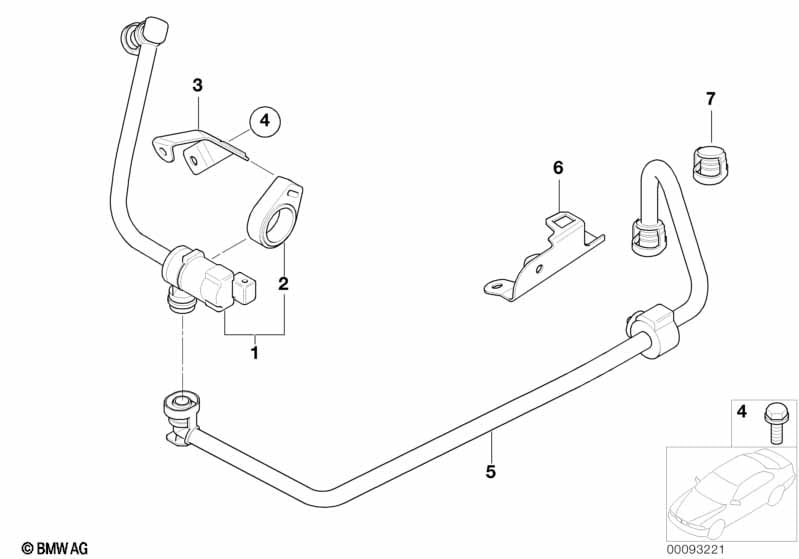

This Zawór odpow. zbiornika paliwa technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zawór odpow. zbiornika paliwa | 1 | 13907506739 | $82.88 | Shop at ECS Tuning | |||||
| 02 | Wspornik zaworu. odpow. zbiornika | 1 | 13907509975 | $5.37 | Shop at ECS Tuning | |||||
| 03 | Wspornik zaworu. odpow. zbiornika | 1 | 13907506626 | $5.60 | Shop at ECS Tuning | |||||
| 04 | Śruba z podkładką | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Przewód odpow. zbiornika z rezonatorem | 1 | 13907522415 | $55.53 | Shop at ECS Tuning | |||||
| 06 | Uchwyt przew. odpow. zbiornika | 1 | 13907511155 | $5.60 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Zawór odpow. zbiornika paliwa?
- This technical diagram illustrates the Zawór odpow. zbiornika paliwa within the Mieszanka paliwowa group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Zawór odpow. zbiornika paliwa (Part #13907506739).
- Which models use the hardware listed in this Zawór odpow. zbiornika paliwa?
- The hardware and components featured in the Zawór odpow. zbiornika paliwa are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Zawór odpow. zbiornika paliwa (13907506739) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zawór odpow. zbiornika paliwa assembly?
- Each item in the Zawór odpow. zbiornika paliwa corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Zawór odpow. zbiornika paliwa by locating its position on the schematic, which then links to the official BMW part number 13907506739 for the Mieszanka paliwowa section.
