Tłumik szmerów ssania/wkład filtra/HFM for BMW 3 Series E90 320i (2006)

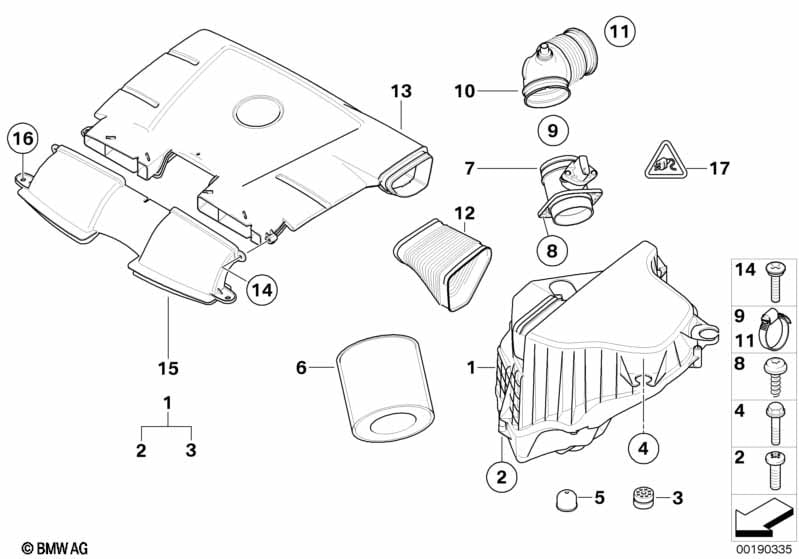

This Tłumik szmerów ssania/wkład filtra/HFM technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtr powietrza | 1 | 13717543163 | $278.31 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Silnik niskoprężny |
S858A=Tak |
|||||||||
| 01 | Filtr powietrza | 1 | 06/2006 | 13717543162 | Shop at ECS Tuning | |||||
| Dla samochodów z Wersja na benzynę ołowiową |
S199A=Tak |
|||||||||
| 01 | Filtr powietrza | 1 | 13717543162 | Shop at ECS Tuning | ||||||
| 02 | Śruba | 5 | 13717543160 | Shop at ECS Tuning | ||||||
| 03 | Element odsprzęgający | 2 | 13717539911 | $5.73 | Shop at ECS Tuning | |||||
| 04 | Śruba z podkładką | M6X25-ZNNIV SI | 2 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 05 | Odbojnik gumowy | 1 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 06 | Wkład filtra powietrza | 1 | 13717532754 | $21.48 | Shop at ECS Tuning | |||||
| 07 | Przepływomierz powietrza | 1 | 13627533853 | Shop at ECS Tuning | ||||||
| Dla samochodów z Wersja na benzynę ołowiową lub Silnik niskoprężny |
S199A=Tak S858A=Tak |
|||||||||
| 07 | Przepływomierz powietrza | 1 | 13627566989 | Shop at ECS Tuning | ||||||
| 08 | Śruba | 1 | 13717543159 | Shop at ECS Tuning | ||||||
| 09 | Opaska na węże | L83-90 | 1 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 10 | Osłona gumowa | 1 | 13717532755 | $16.20 | Shop at ECS Tuning | |||||
| 11 | Opaska na węże | L77-84 | 1 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 12 | Osłona gumowa | 1 | 13717523630 | $16.20 | Shop at ECS Tuning | |||||
| 13 | Króciec ssący | 1 | 13717560918 | $79.63 | Shop at ECS Tuning | |||||
| 14 | Śruba Torx do tworzyw sztucznych | ISA L=25MM | 3 | 07147549513 | $0.29 | Shop at ECS Tuning | ||||
| 15 | Kanał ssący, przedni | 1 | 13717541738 | $56.91 | Shop at ECS Tuning | |||||
| 16 | Nit rozprężny | 2 | 51471919209 | $0.45 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
