Czuj. przeciwpył. f. paliw./Elem. dod. for BMW 5 Series E61 LCI 520d

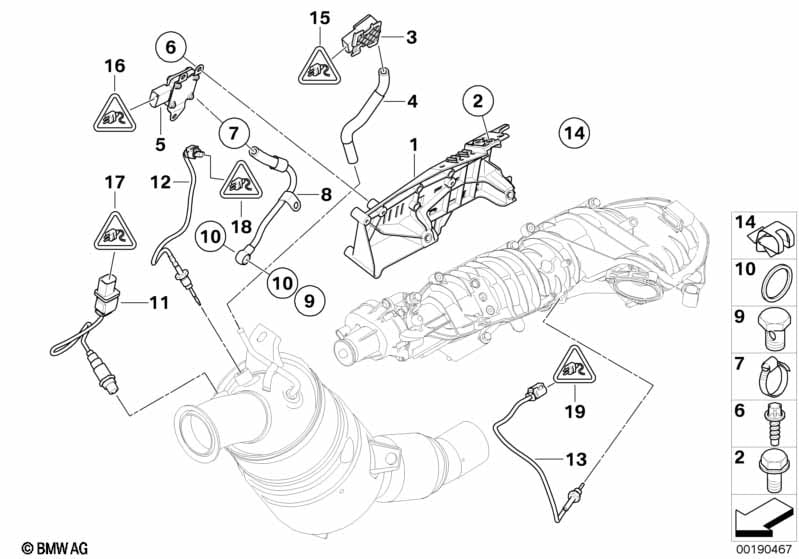

This Czuj. przeciwpył. f. paliw./Elem. dod. technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uchwyt czujnika | 1 | 09/2008 | 13627810180 | Shop at ECS Tuning | |||||
| 02 | Śruba z podkładką | M6X16-U1-8.8 | 3 | 10/2008 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 03 | Czujnik ciśnienia spalin | 1 | 09/2008 | 13627805152 | Shop at ECS Tuning | |||||
| 04 | Przewód elastyczny | 7.3X2 | X | 13628591459 | Shop at ECS Tuning | |||||
| 05 | Czujnik ciśnienia spalin | 1 | 09/2008 | 13627808013 | $75.27 | Shop at ECS Tuning | ||||
| 06 | Śruba z tworz. szt. | 5,0X19,5 | 3 | 09/2008 | 06/2013 | 11127805414 | $1.58 | Shop at ECS Tuning | ||
| 06 | Śruba Torx do tworzyw sztucznych | TS5X20 | 3 | 06/2013 | 07119907480 | Shop at ECS Tuning | ||||
| 07 | Opaska na węże | L12-15 | 1 | 09/2008 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 08 | Rura ciśnieniowa spalin | 1 | 09/2008 | 13627811935 | Shop at ECS Tuning | |||||
| 09 | Śruba drążona | M12X1,5 | 1 | 09/2008 | 13627811933 | $6.15 | Shop at ECS Tuning | |||
| 10 | Pierścień uszczelniający | A12X15,5 | 2 | 09/2008 | 13627811934 | $0.52 | Shop at ECS Tuning | |||
| 11 | Sonda lambda | L=420MM | 1 | 09/2008 | 03/2009 | 13627804369 | Shop at ECS Tuning | |||
| 11 | Sonda lambda | L=420MM | 1 | 03/2009 | 13627804369 | Shop at ECS Tuning | ||||
| Dla samochodów z Redukcja spalin EU 3 |
S169A=Tak |
|||||||||
| 11 | Śruba z pierścieniem uszcz. | M18X1,5 | 1 | 03/2009 | 11621437517 | $11.43 | Shop at ECS Tuning | |||
| 12 | Czujnik temperatury spalin | 1 | 09/2008 | 13627806254 | Shop at ECS Tuning | |||||
| 13 | Czujnik temperatury AGR | L=406MM | 1 | 09/2008 | 13627811913 | $96.82 | Shop at ECS Tuning | |||
| 14 | Zacisk przewodu | 1 | 09/2008 | 11787547198 | $1.25 | Shop at ECS Tuning | ||||
