Tłumik szmerów ssania/wkład filtra for BMW 7 Series E32 740i (1992)

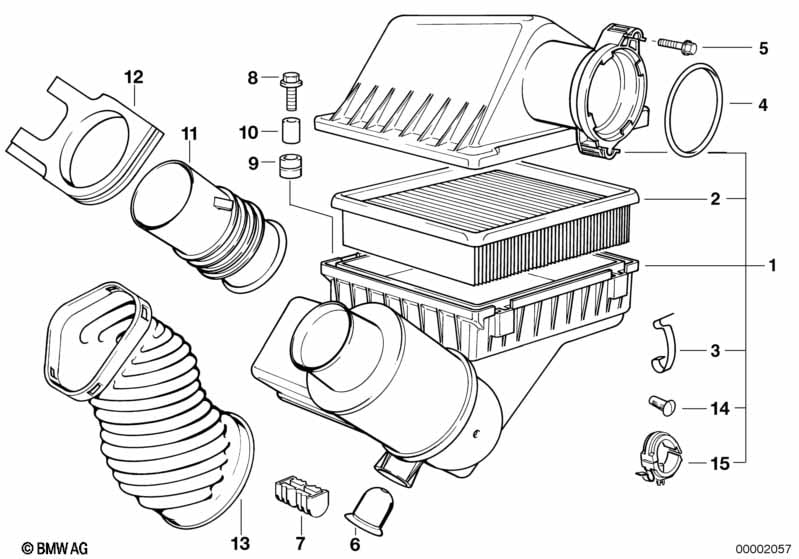

This Tłumik szmerów ssania/wkład filtra technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtr powietrza | 1 | 13711736136 | $300.56 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Wersja dla ciepłych krajów tylko do Heavy Duty (do trudn. warunków) |
S823A=Tak |
|||||||||
| 01 | Filtr powietrza kpl. cyklon | 1 | 13711702145 | $247.53 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Wkład filtra powietrza | 1 | 13721736675 | $29.76 | Shop at ECS Tuning | |||||
| Dla samochodów z Wersja dla ciepłych krajów tylko do Heavy Duty (do trudn. warunków) |
S823A=Tak |
|||||||||
| 02 | Wkład filtra powietrza | 1 | 13721702158 | $29.76 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Zaczep sprężynowy | L=42MM | 7 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| 04 | O-Ring | 91X6MM | 1 | 13711731893 | $4.38 | Shop at ECS Tuning | ||||
| 05 | Śruba | K50X22 | 2 | 13711715678 | $0.63 | Shop at ECS Tuning | ||||
| 06 | Odbojnik gumowy | 1 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 07 | Łożysko gumowe | 2 | 13711736398 | $6.48 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Śruba z podkładką | M6X30-ZNNIV SI | 2 | 03/2002 | 07119906123 | $0.81 | Shop at ECS Tuning | |||
| 08 | Śruba z podkładką | M6X30-Z1-PHR | 2 | 07119902064 | $0.45 | Shop at ECS Tuning | ||||
| 11 | Króciec ssący | 1 | 13711736630 | $22.71 | Shop at ECS Tuning | |||||
| 12 | Uszczelka | 1 | 13711747012 | $13.62 | Shop at ECS Tuning | |||||
| Dla samochodów z Klimatyzacja |
S530A=Tak |
|||||||||
| 12 | Uszczelka | 1 | 13711747013 | $11.27 | Shop at ECS Tuning | |||||
| 14 | Pokrywka | 1 | 13711741097 | $0.25 | Shop at ECS Tuning | |||||
| 15 | Uchwyt przewodu | 1 | 11531714433 | $2.39 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
