Filtr z węglem aktywnym/Przewody for BMW 5 Series E34 535i (1988)

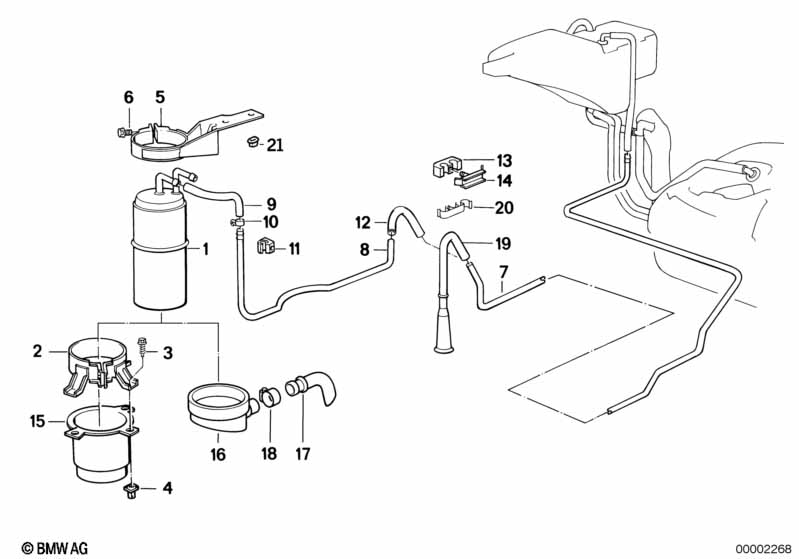

This Filtr z węglem aktywnym/Przewody technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Brak katalizatora |
S199A=Nie |
|||||||||
| 01 | Filtr z węglem aktywnym | 1 | 06/1988 | 16131178956 | $131.82 | Shop at ECS Tuning | ||||
| 05 | Uchwyt | 1 | 16131178933 | $21.20 | Shop at ECS Tuning | |||||
| 06 | Śruba z podkładką | M6X16-U2-ZNS3 | 1 | 07119902913 | Shop at ECS Tuning | |||||
| 07 | Przewód odpowietrzający | L=4497MM | 1 | 16131179606 | $15.05 | Shop at ECS Tuning | ||||
| 08 | Przewód odpowietrzający | 1 | 16131180295 | $20.23 | Shop at ECS Tuning | |||||
| 09 | Przewód paliwowy elastyczny | 561MM-920MM | 1 | 13311722565 | $45.38 | Shop at ECS Tuning | ||||
| 10 | Opaska na węże | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Uchwyt przewodu | 3 | 16131177494 | $1.60 | Shop at ECS Tuning | |||||
| 12 | Przewód paliwowy elastyczny | 8X13MM | 1 | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 13 | Element zaciskowy | 2 | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 14 | Uchwyt | 2 | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| Dla samochodów z Brak katalizatora i Katalizator - przygotowanie |
S199A=Nie =Tak |
|||||||||
| 19 | Końcówka | 1 | 16131179488 | $6.70 | Shop at ECS Tuning | |||||
| 20 | Zacisk przewodu | 1 | 12/1989 | 16131179124 | $1.22 | Shop at ECS Tuning | ||||
| Dla samochodów z Brak katalizatora |
S199A=Nie |
|||||||||
| 21 | Przycisk | 2 | 51131820141 | $0.31 | Shop at ECS Tuning | |||||
