Przewody paliwa/Filtr paliwa for BMW 7 Series E65 745i (2003)

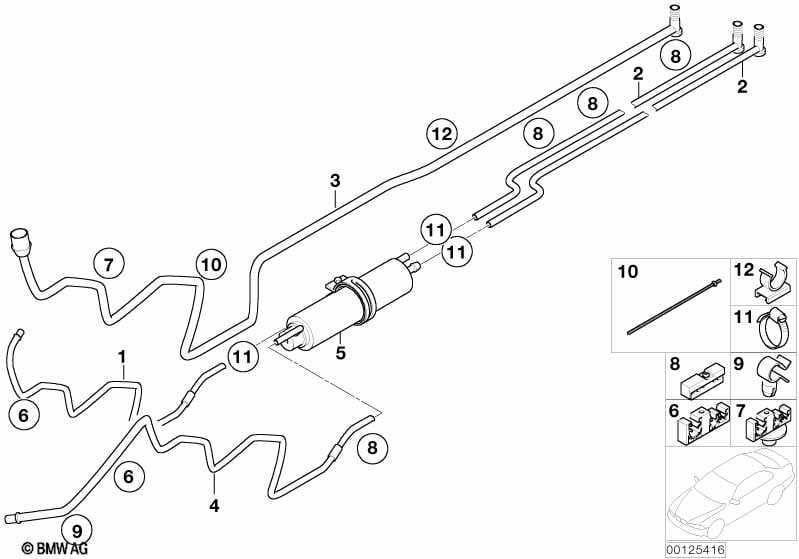

This Przewody paliwa/Filtr paliwa technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód dopływowy paliwa przedni | 1 | 09/2006 | 16127177206 | $30.47 | Shop at ECS Tuning | ||||
| 02 | Przewód paliwa tylny krótki | 2 | 09/2006 | 16127177208 | $20.23 | Zakończono | Shop at ECS Tuning | |||
| 03 | Przewód powietrza przedmuchowy przedni | 1 | 16126752444 | $50.70 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Przewód drenażowy | 1 | 09/2006 | 16127177207 | $20.05 | Zakończono | Shop at ECS Tuning | |||
| 05 | Filtr paliwa z regulatorem ciśnienia | 1 | 16126750475 | $96.84 | Shop at ECS Tuning | |||||
| 06 | Zatrzask potrójny | 2 | 16126755011 | $1.28 | Shop at ECS Tuning | |||||
| 07 | Zatrzask potrójny | 1 | 16126755010 | $1.28 | Shop at ECS Tuning | |||||
| 08 | Zatrzask przewodu | 4 | 16121184919 | $3.07 | Shop at ECS Tuning | |||||
| 09 | Uchwyt przewodu | 1 | 11141717656 | $0.63 | Shop at ECS Tuning | |||||
| 10 | Opaska kablowa | L=100MM/B=2,5MM | 1 | 61131372391 | $0.08 | Shop at ECS Tuning | ||||
| 11 | Opaska na węże | L12-15 | 3 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Zaczep | 1 | 16136758507 | $1.08 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
