Osłona wentylatora for BMW 3 Series E46 325i (2002)

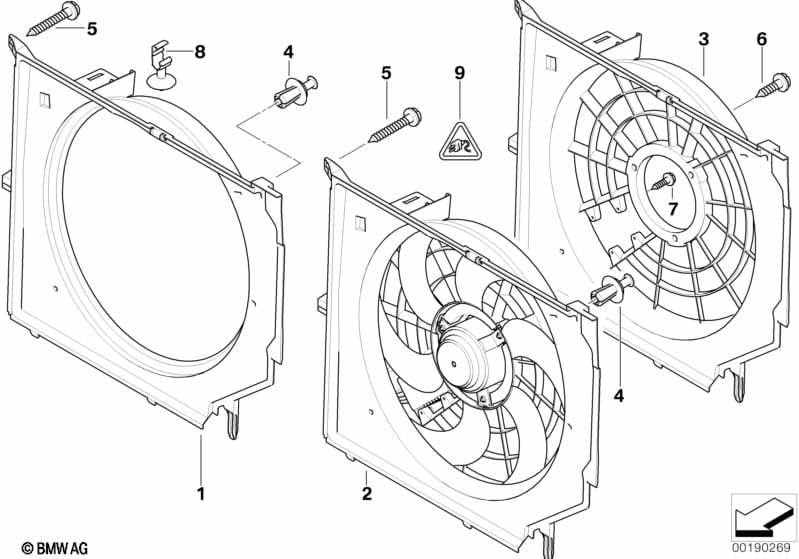

This Osłona wentylatora technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Automatyczna skrzynia biegów i Wersja dla ciepłych krajów |
S205A=Tak S823A=Tak |
|||||||||
| 01 | Osłona wentylatora | 1 | 17111436259 | $30.63 | Shop at ECS Tuning | |||||
| Dla samochodów z Automatyczna skrzynia biegów i Klimatyzacja automatyczna i Klimatyzacja |
S205A=Tak S534A=Tak S530A=Nie |
|||||||||
| 01 | Osłona wentylatora | 1 | 17111436259 | $30.63 | Shop at ECS Tuning | |||||
| Dla samochodów z Automatyczna skrzynia biegów i Klimatyzacja automatyczna i Klimatyzacja |
S205A=Tak S534A=Nie S530A=Tak |
|||||||||
| 01 | Osłona wentylatora | 1 | 17111436259 | $30.63 | Shop at ECS Tuning | |||||
| 02 | Osłona wentylatora z wentylatorem | 390W | 1 | 17117561757 | $477.38 | Shop at ECS Tuning | ||||
| pasuje tylko do Siemens | ||||||||||
| 03 | Osłona wentylatora | 1 | 11/1999 | 17117507604 | $103.40 | +podst | Shop at ECS Tuning | |||
| pasuje tylko do Bosch | ||||||||||
| 03 | Osłona wentylatora | 1 | 11/1999 | 17117511168 | $103.40 | Shop at ECS Tuning | ||||
| 04 | Nit rozprężny | 1 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 05 | Śruba samogwintująca | D6X40 ZNS3 | 1 | 17117536972 | $1.12 | Shop at ECS Tuning | ||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
