Chł. oleju autom. skrz. bieg. A5S 325Z for BMW 3 Series E46 325i (2002)

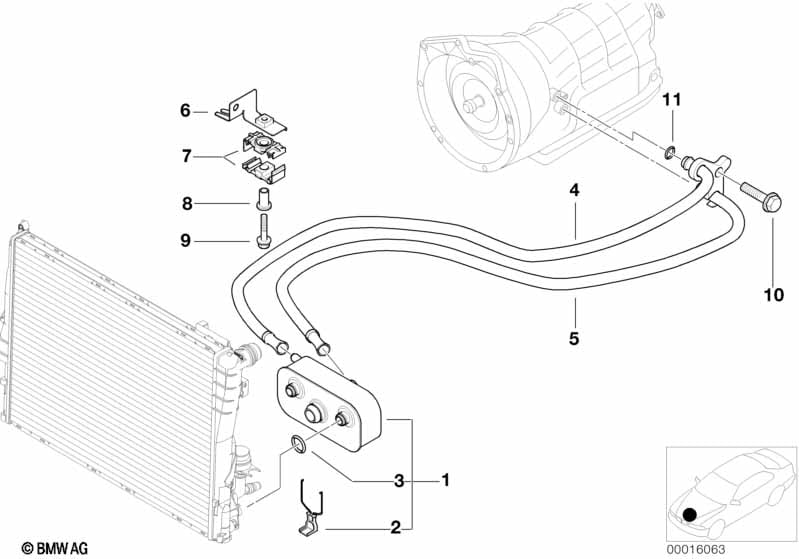

This Chł. oleju autom. skrz. bieg. A5S 325Z technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wymiennik ciepła | 1 | 17227505826 | $185.93 | Shop at ECS Tuning | |||||
| 02 | Klamra | 1 | 17221707786 | $3.77 | Shop at ECS Tuning | |||||
| 03 | O-Ring | 14,5X2,5 | 2 | 17111711987 | $1.73 | Shop at ECS Tuning | ||||
| 04 | Przewód chłodnicy oleju odpływowy | A5S 325Z | 1 | 17227577672 | $85.25 | +podst | Shop at ECS Tuning | |||
| 05 | Przewód chłodnicy oleju dopływowy | A5S 325Z | 1 | 17227577671 | $110.18 | +podst | Shop at ECS Tuning | |||
| 06 | Uchwyt | 1 | 17221705841 | $4.12 | Shop at ECS Tuning | |||||
| 07 | Uchwyt przewodu olejowego | 2 | 17201712210 | $1.02 | Shop at ECS Tuning | |||||
| 08 | Tulejka dystansowa | D6 | 1 | 17227798686 | $3.32 | Shop at ECS Tuning | ||||
| 09 | Śruba z podkładką | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| 10 | Śruba mocująca | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning | ||||
| 11 | O-Ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning |
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
