Prowadzenie węży wody ukł. chłodn. for BMW 3 Series E46 325i (2002)

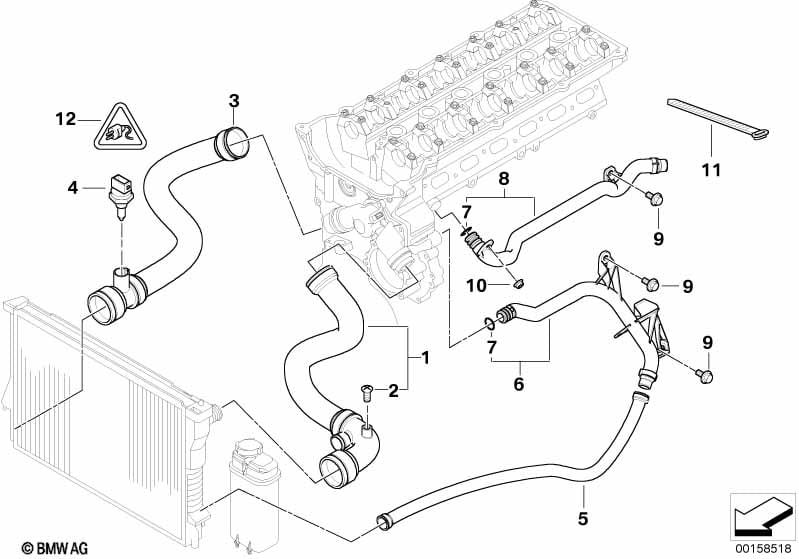

This Prowadzenie węży wody ukł. chłodn. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód elastyczny układu chłodzenia | 1 | 17127510952 | $32.98 | Shop at ECS Tuning | |||||
| 02 | Śruba odpowietrznika | M10X1-SW | 1 | 10/2003 | 17111712788 | $3.17 | Shop at ECS Tuning | |||
| 02 | Śruba odpowietrznika | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 03 | Przewód elastyczny układu chłodzenia | 1 | 11531436408 | $33.96 | +podst | Shop at ECS Tuning | ||||
| 04 | Czujnik temperatury płynu chłodz. | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 05 | Wąż odpływu | 1 | 11531436410 | $22.15 | +podst | Shop at ECS Tuning | ||||
| 06 | Przewód wody | 1 | 11537502525 | $35.83 | Shop at ECS Tuning | |||||
| 07 | O-Ring | 20X3 | 4 | 11531435808 | $1.81 | Shop at ECS Tuning | ||||
| 08 | Rurka dopływ. ogrzewania | 1 | 11531705210 | $30.08 | Shop at ECS Tuning | |||||
| 09 | Śruba z podkładką | M8X20-U1-8.8 | 3 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 10 | Nakrętka z podkładką | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Opaska przewodu z uchwytem | Ø=7,7 / L=200 | 1 | 61136924664 | $0.55 | Shop at ECS Tuning | ||||
| 12 | Obudowa gniazda | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy SLK 2,8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- SI = Service-Information (Informacja serwisowa)
