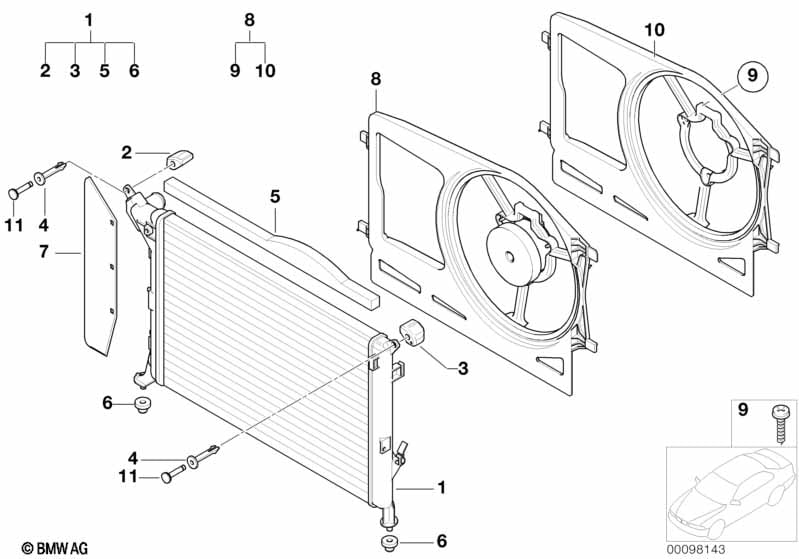

Radiator/frame for BMW MINI R50 Cooper (2004)
This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Wersja krajowa Japonia i Wersja krajowa Kanada i Klimatyzacja i Klimatyzacja automatyczna i Wersja dla ciepłych krajów |
L807A=Nie L838A=Nie S530A=Nie S534A=Nie S823A=Nie |
||||||||
| 01 | Chłodnica płynu chłodzącego | 1 | 07/2004 | 17107535902 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Elastyczny przewód ukł. chłodz. | 1 | 07/2004 | 17127515489 | $20.98 | +podst | Shop at ECS Tuning | |||
| 02 | Poduszka gumowa chłodnicy górna prawa | 1 | 17107515475 | $5.83 | Shop at ECS Tuning | |||||
| 03 | Poduszka gumowa chłodnicy, górna lewa | 1 | 17107515476 | $5.83 | Shop at ECS Tuning | |||||
| 04 | Nit rozprężny | 2 | 17107515478 | $1.17 | Shop at ECS Tuning | |||||
| 05 | Top damski | 1 | 17107516318 | Zakończono | Shop at ECS Tuning | |||||
| 06 | Łożysko gumowe | 2 | 17107515477 | $3.52 | Shop at ECS Tuning | |||||
| 07 | Owiewka | 1 | 17107510087 | Shop at ECS Tuning | ||||||
| 08 | Osłona wentylatora z wentylatorem | 100W | 1 | 17101475578 | +podst | Shop at ECS Tuning | ||||
| 09 | Śruba | 3 | 17107515482 | $0.87 | Shop at ECS Tuning | |||||
| 10 | Osłona wentylatora | 1 | 17107515484 | +podst | Shop at ECS Tuning | |||||
| 11 | Kołek | 2 | 17107515274 | $0.98 | Shop at ECS Tuning | |||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
