Korpus wentylatora/Wentylator for BMW 7 Series E65 745i (2003)

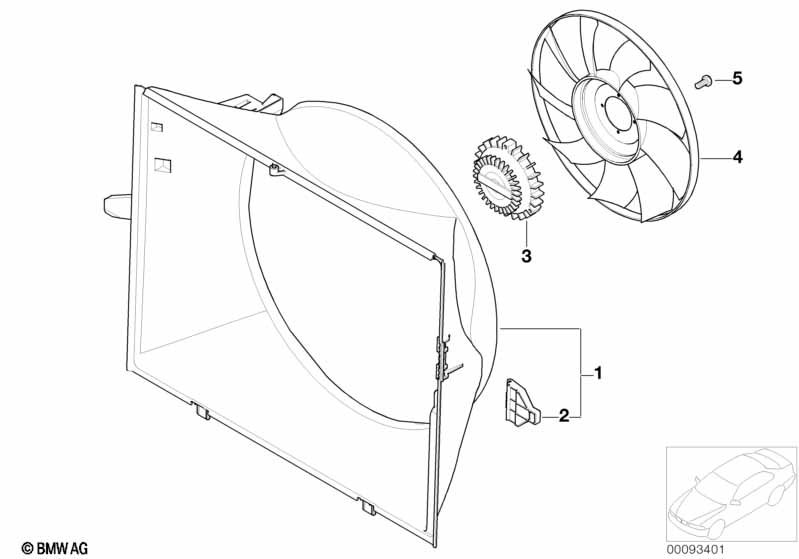

This Korpus wentylatora/Wentylator technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Wersja krajowa Golf |
L822A=Tak |
|||||||||
| 01 | Osłona wentylatora | 1 | 17117507977 | $49.18 | Shop at ECS Tuning | |||||
| 02 | Uchwyt obudowy wentylatora | 1 | 17117507979 | $5.82 | Shop at ECS Tuning | |||||
| 03 | Sprzęgło wentylatora | 1 | 17417505109 | $196.43 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Wentylator | 1 | 17417504732 | $56.15 | Shop at ECS Tuning | |||||
| 05 | Śruba sześciokątna z kołnierzem | M6X12-8.8-ZNS3 | 4 | 07119904125 | $0.25 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
