Prowadzenie węży wody ukł. chłodn. for BMW 7 Series E65 745i (2003)

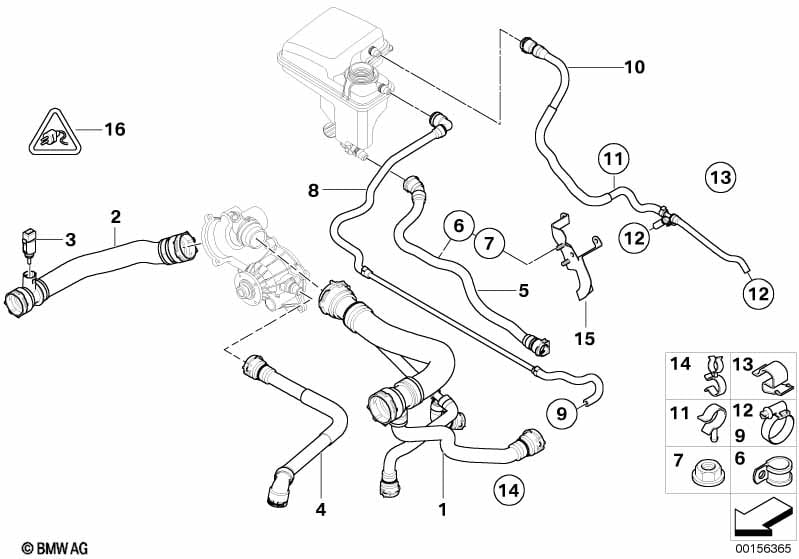

This Prowadzenie węży wody ukł. chłodn. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Elastyczny przewód dopływowy | 1 | 09/2003 | 17127526954 | $87.15 | +podst | Shop at ECS Tuning | |||
| 02 | Elastyczny przewód powrotny | 1 | 17127508011 | $43.58 | +podst | Shop at ECS Tuning | ||||
| 03 | Czujnik temperatury płynu chłodz. | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 04 | Przewód powrotny | 1 | 09/2003 | 17127568246 | $27.60 | +podst | Shop at ECS Tuning | |||
| 05 | Przewód powrotny | 1 | 17127508015 | $27.60 | +podst | Shop at ECS Tuning | ||||
| 06 | Obejma rurowa | 1 | 17127515346 | $1.17 | Shop at ECS Tuning | |||||
| 07 | Nakrętka z podkładką | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Przewód odpowietrzający | 1 | 17127508012 | $35.87 | +podst | Shop at ECS Tuning | ||||
| 09 | Opaska na węże | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Przewód odpowietrzający | 1 | 17127508013 | $59.68 | +podst | Shop at ECS Tuning | ||||
| 11 | Uchwyt przewodu | 1 | 17111719199 | $1.18 | Shop at ECS Tuning | |||||
| 12 | Opaska na węże | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 13 | Zacisk przewodu | 1 | 08/2024 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 13 | Zaczep | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 14 | Uchwyt przewodu | 1 | 13537533827 | $1.65 | Shop at ECS Tuning | |||||
| 15 | Uchwyt | 1 | 11727506095 | $9.52 | Shop at ECS Tuning | |||||
| 16 | Obudowa gniazda | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy SLK 2,8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- SI = Service-Information (Informacja serwisowa)
