Korpus wentylatora/Wentylator for BMW 7 Series E65 745i (2003)

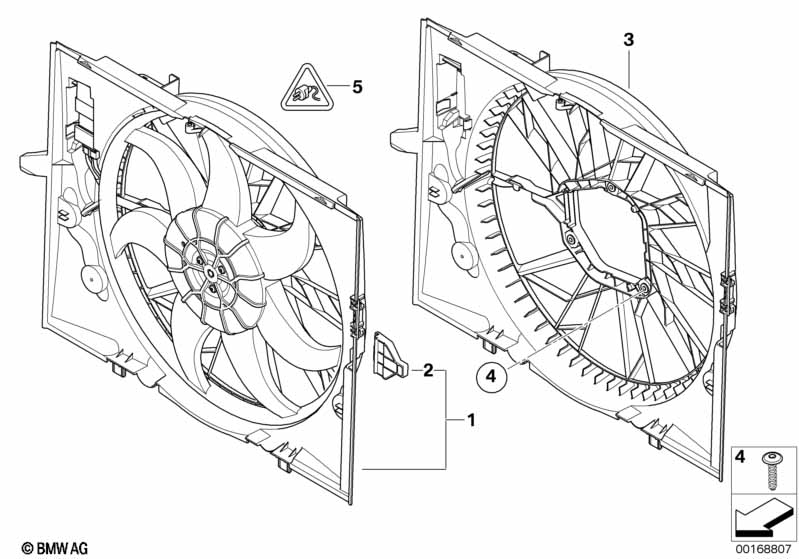

This Korpus wentylatora/Wentylator technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Osłona wentylatora z wentylatorem | 600W | 1 | 03/2003 | 17427524881 | $621.50 | Zakończono | Shop at ECS Tuning | ||
| 02 | Uchwyt obudowy wentylatora | 1 | 03/2003 | 17117507979 | $5.82 | Shop at ECS Tuning | ||||
| 03 | Osłona wentylatora | 1 | 03/2003 | 17427514560 | $289.13 | Zakończono | Shop at ECS Tuning | |||
| 04 | Śruba | M5X12MM | 3 | 03/2003 | 17117587715 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Korpus wentylatora/Wentylator?
- This technical diagram illustrates the Korpus wentylatora/Wentylator within the Chłodnica group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Osłona wentylatora z wentylatorem (Part #17427524881).
- Which models use the hardware listed in this Korpus wentylatora/Wentylator?
- The hardware and components featured in the Korpus wentylatora/Wentylator are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Osłona wentylatora z wentylatorem (17427524881) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Korpus wentylatora/Wentylator assembly?
- Each item in the Korpus wentylatora/Wentylator corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Osłona wentylatora z wentylatorem by locating its position on the schematic, which then links to the official BMW part number 17427524881 for the Chłodnica section.
