Elementy zawieszenia rur wydech. for BMW 3 Series E46 318i

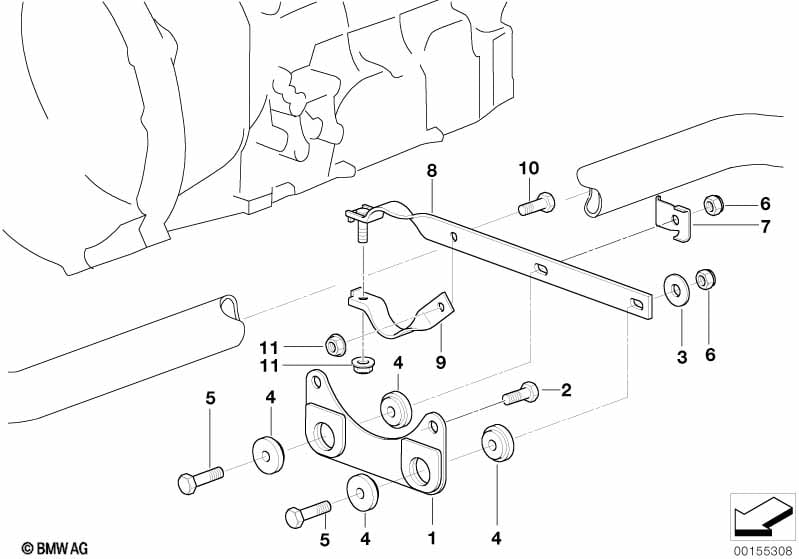

This Elementy zawieszenia rur wydech. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Ręczna skrzynia biegów |
=Tak |
|||||||||
| 01 | Uchwyt | 1 | 18301432594 | $4.20 | Shop at ECS Tuning | |||||
| 02 | Śruba sześciokątna | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 03 | Podkładka | 8,4X18X2MM | 1 | 06/2001 | 07149180923 | Shop at ECS Tuning | ||||
| 03 | Podkładka | 8,4X24X2-ZNS3 | 1 | 01/2002 | 07119904164 | $0.40 | Shop at ECS Tuning | |||
| 04 | Tuleja przegubu | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 05 | Śruba z podkładką | M8X35-U1 | 2 | 01/2002 | 07119905533 | $0.44 | Shop at ECS Tuning | |||
| 05 | Śruba z łbem walcowym | M8X35-10.9-ZNS3 | 2 | 07119906650 | $0.87 | Shop at ECS Tuning | ||||
| 06 | Nakrętka samozabezpieczająca | M8-8-ZNS3 | 2 | 01/2002 | 07129904002 | $0.18 | Shop at ECS Tuning | |||
| 06 | Nakrętka samozabezp. z kołnierzem | M8-8 ZNS3 | 2 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Podpora | 1 | 18301432861 | $1.87 | Shop at ECS Tuning | |||||
| 08 | Wspornik rury wydechowej | 1 | 12/2002 | 18207522914 | Shop at ECS Tuning | |||||
| pasuje tylko do | ||||||||||
| -- | RP katalizator z tłumikiem środkowym | EU4 | X | 12/2002 | 18307523730 | Shop at ECS Tuning | ||||
| Dla samochodów z Ręczna skrzynia biegów |
=Tak |
|||||||||
| 08 | Wspornik rury wydechowej | 1 | 18301436298 | Shop at ECS Tuning | ||||||
| 09 | Obejma | 1 | 18207546288 | Shop at ECS Tuning | ||||||
| 09 | Obejma | 1 | 12/2002 | 18207522915 | Shop at ECS Tuning | |||||
| pasuje tylko do | ||||||||||
| -- | RP katalizator z tłumikiem środkowym | EU4 | X | 12/2002 | 18307523730 | Shop at ECS Tuning | ||||
| 10 | Śruba sześciokątna | M8X16-8.8-ZNS3 | 1 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Nakrętka kołnierzowa | M8 | 2 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
