Kolektor wydechowy z katalizatorem for BMW 3 Series E46 318i

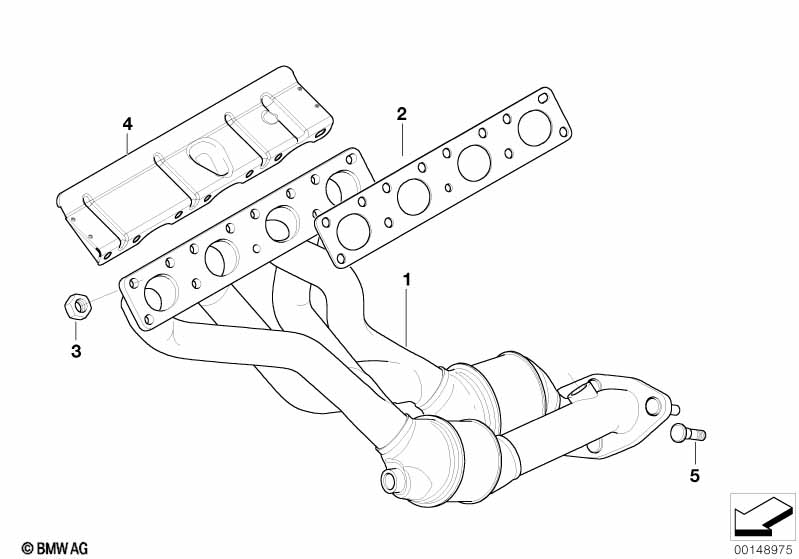

This Kolektor wydechowy z katalizatorem technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP kolektor wydechowy z katalizatorem | EU4 | 1 | 18407506559 | Shop at ECS Tuning | |||||
| Dla samochodów z Wersja na benzynę ołowiową |
S199A=Tak |
|||||||||
| 01 | Kolektor wydechowy | 1 | 03/2002 | 18407519642 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Uszczelka płaska | 1 | 18407506778 | $18.21 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Nakrętka sześciokątna | 13 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 03 | Nakrętka sześciokątna | 13 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 04 | Osłona termiczna | 1 | 18407547849 | Shop at ECS Tuning | ||||||
| 05 | Śruba sześciokątna | M10X40-SW16 | 4 | 11621427586 | $21.57 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
