Kolektor wydechowy z katalizatorem for BMW 7 Series E65 745i (2003)

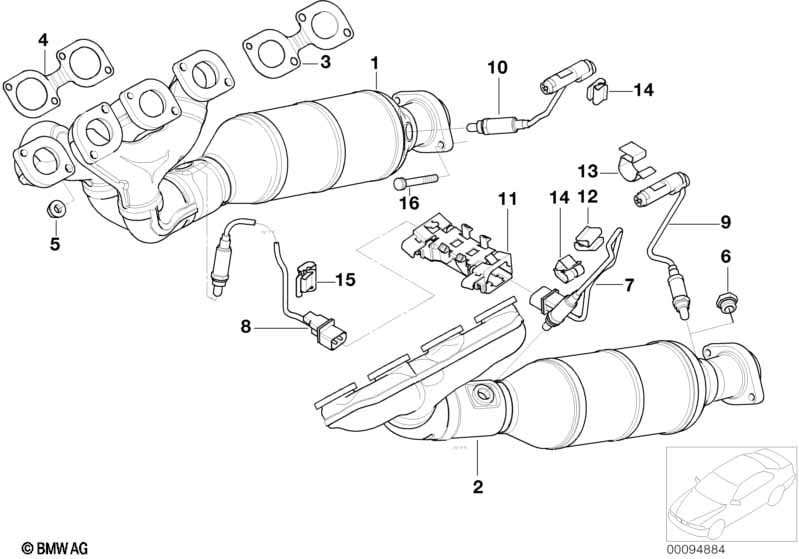

This Kolektor wydechowy z katalizatorem technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP kolektor wydechowy z katalizatorem | ZYL. 1-4 (EU3) | 1 | 09/2003 | 18407522554 | $1270.49 | Shop at ECS Tuning | |||
| 02 | RP kolektor wydechowy z katalizatorem | ZYL. 5-8 (EU3) | 1 | 09/2003 | 18407522555 | $1270.49 | Shop at ECS Tuning | |||
| 04 | Uszczelka | 4 | 10/2003 | 11627505789 | $10.94 | Shop at ECS Tuning | ||||
| Konieczne do naprawy | ||||||||||
| -- | Nakrętka z kołnierzem | M8 | 16 | 10/2003 | 11627509731 | $4.18 | Shop at ECS Tuning | |||
| 05 | Nakrętka z kołnierzem | M8 | 16 | 11627509731 | $4.18 | Shop at ECS Tuning | ||||
| pasuje tylko do cylindra 5-8 | ||||||||||
| 07 | Sonda lambda, szara | L= 620MM | 1 | 05/2002 | 11787521705 | $215.65 | Shop at ECS Tuning | |||
| pasuje tylko do cylindra 1-4 | ||||||||||
| 08 | Sonda lambda, czarna | L= 650MM | 1 | 11787516150 | $215.65 | Shop at ECS Tuning | ||||
| pasuje tylko do cylindra 5-8 | ||||||||||
| 09 | Sonda lambda, szara | L= 450MM | 1 | 10/2003 | 11787512002 | $215.65 | Shop at ECS Tuning | |||
| pasuje tylko do cylindra 1-4 | ||||||||||
| 10 | Sonda lambda, czarna | L= 325MM | 1 | 11787512567 | $215.65 | Shop at ECS Tuning | ||||
| 11 | Uchwyt obudowy wtyczki | 1 | 11787506855 | $8.28 | Shop at ECS Tuning | |||||
| 12 | Zaczep | 1 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 13 | Zacisk przewodu | D=19-24/B=5 | 2 | 11787548951 | $1.12 | Shop at ECS Tuning | ||||
| 14 | Klamra | A=3,5 - 6,0MM | 3 | 07147547239 | $0.58 | Shop at ECS Tuning | ||||
| 15 | Zacisk przewodu | 1 | 08/2024 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 15 | Zaczep | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 16 | Śruba moletowana | M8X50 | 4 | 18407536175 | $6.52 | Shop at ECS Tuning | ||||
