Sportowa Końcówka tłumika for BMW MINI R50 Cooper (2004)

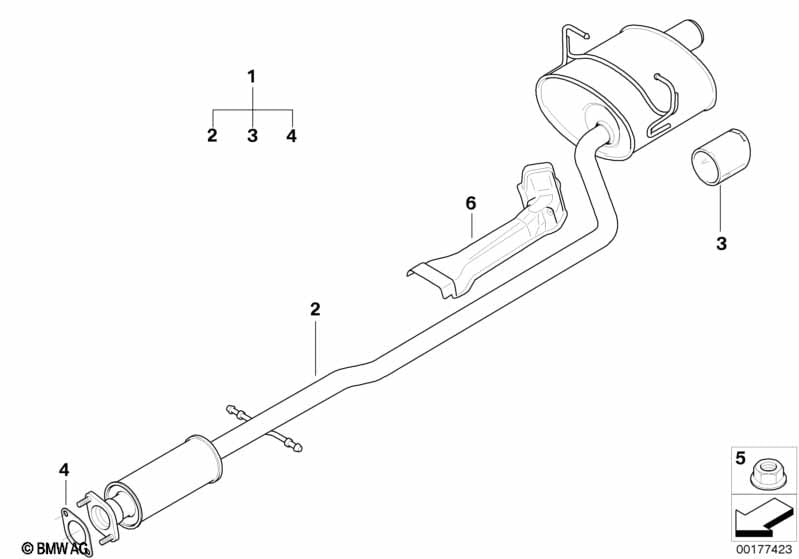

This Sportowa Końcówka tłumika technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sportowa rura wydechowa | J. COOPER WORKS | 1 | 18100399689 | $592.28 | Zakończono | Shop at ECS Tuning | |||
| 02 | Sportowa rura wydechowa | J. COOPER WORKS | 1 | 18100399689 | $592.28 | Zakończono | Shop at ECS Tuning | |||
| 03 | Osł. końcówki tłumika, chrom | 1 | 82120398919 | $69.00 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 04 | Uszczelka płaska | 1 | 18111170941 | $8.46 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Nakrętka sześciokątna z kołnierzem | M10 | 2 | 07130757758 | $1.09 | Shop at ECS Tuning | ||||
| 05 | Nakrętka sześciokątna z kołnierzem | M10 | 2 | 07130757758 | $1.09 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Sportowa Końcówka tłumika?
- This technical diagram illustrates the Sportowa Końcówka tłumika within the Układ wydechowy group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Sportowa rura wydechowa (Part #18100399689).
- Which models use the hardware listed in this Sportowa Końcówka tłumika?
- The hardware and components featured in the Sportowa Końcówka tłumika are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Sportowa rura wydechowa (18100399689) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sportowa Końcówka tłumika assembly?
- Each item in the Sportowa Końcówka tłumika corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Sportowa rura wydechowa by locating its position on the schematic, which then links to the official BMW part number 18100399689 for the Układ wydechowy section.
