Katalizator Diesel for BMW 5 Series E61 LCI 520d (2008)

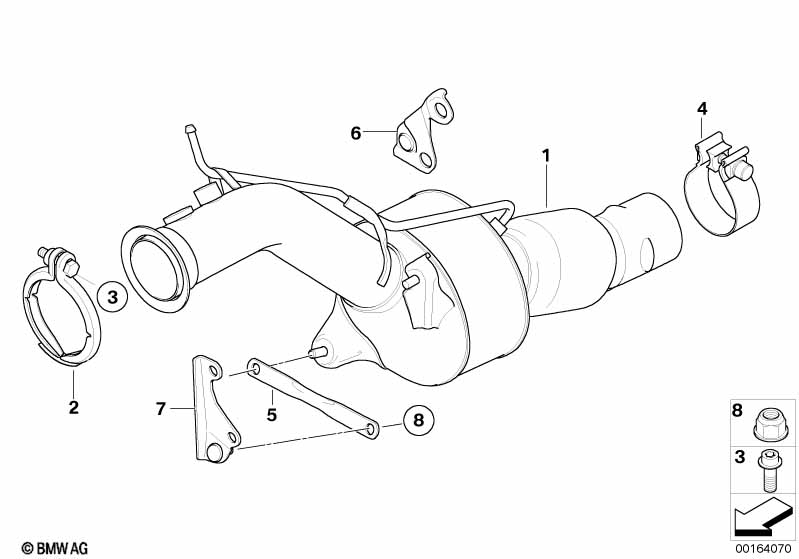

This Katalizator Diesel technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Redukcja spalin EU 3 |
S169A=Tak |
|||||||||
| 01 | RP katalizator w pobliżu silnika | EU3 | 1 | 03/2009 | 18307804613 | Zakończono | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Obejma taśmowa V | 1 | 03/2009 | 18308512137 | Shop at ECS Tuning | |||||
| 02 | Obejma taśmowa V | 1 | 18308512137 | Shop at ECS Tuning | ||||||
| 03 | Śruba sześciokątna | M8X40 A2-70 | 1 | 18307562224 | $2.17 | Shop at ECS Tuning | ||||
| 04 | Obejma uszczelniająca | D=70,6 X 31,8MM | 1 | 18307791587 | $15.83 | Shop at ECS Tuning | ||||
| Dla samochodów z Redukcja spalin EU 3 |
S169A=Tak |
|||||||||
| 05 | Poprzeczka | 2 | 18207804605 | Shop at ECS Tuning | ||||||
| 06 | Wspornik katalizatora w pobliżu silnika | 1 | 18307804604 | Shop at ECS Tuning | ||||||
| 07 | Wspornik katalizatora w pobliżu silnika | 1 | 18307804603 | Shop at ECS Tuning | ||||||
| 08 | Nakrętka z kołnierzem | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 09 | Śruba | M8X20-U1-8.8 | 2 | 07129904559 | $0.71 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
