Czuj. przeciwpył. f. paliw./Elem. dod. for BMW 3 Series E90 320d (2005)

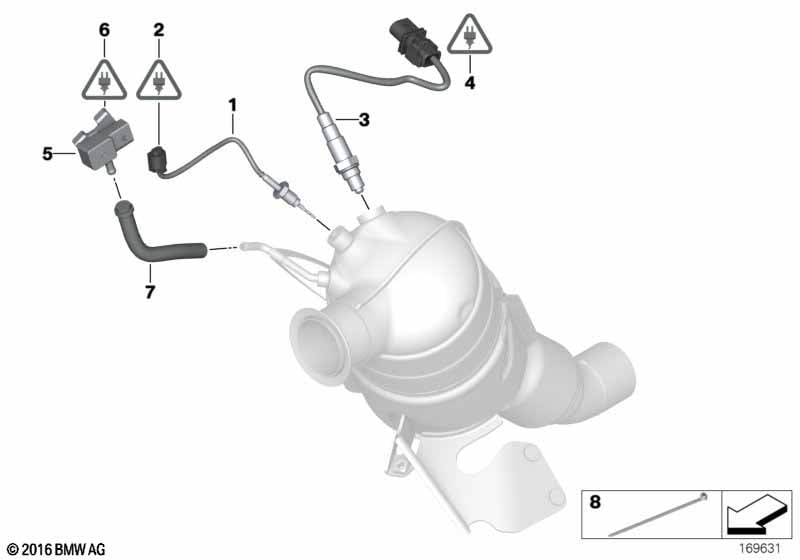

This Czuj. przeciwpył. f. paliw./Elem. dod. technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Filtr cząstek stałych |
S200A=Tak |
|||||||||
| 01 | Czujnik temperatury | 1 | 13627809152 | Shop at ECS Tuning | ||||||
| 02 | Uniwersalna obudowa styków niekodowana | 2 POL. | 1 | 61138366275 | $6.90 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk męski MQS ELA z kablem | 0,2- 0,5MM² | 2 | 61130005200 | $2.00 | Shop at ECS Tuning | ||||
| -- | Styk męski MQS ELA z kablem | 0,75 QMM | 2 | 61130006666 | $2.15 | Shop at ECS Tuning | ||||
| 03 | Sonda lambda | L=380MM | 1 | 13627791600 | Shop at ECS Tuning | |||||
| Dla samochodów z Filtr cząstek stałych |
S200A=Tak |
|||||||||
| 05 | Czujnik ciśnienia | 1 | 13627789219 | $163.45 | Shop at ECS Tuning | |||||
| 07 | Przewód elastyczny | 1 | 13627801744 | Shop at ECS Tuning | ||||||
| 08 | Opaska kablowa | 1 | 12511742867 | $2.73 | Shop at ECS Tuning | |||||
