Układ wydechowy tylny for BMW 7 Series G70 740iX (2022)

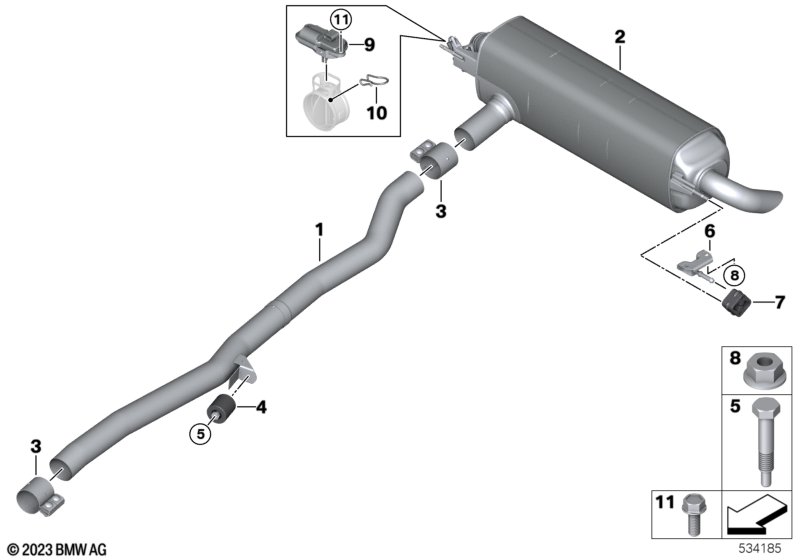

This Układ wydechowy tylny technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Układ wydechowy C6B RDE i Norma spalin EU6 rde II i Norma spalin BHARAT STAGE VI RDE |
S1DDA=Nie S1DFA=Nie S1DMA=Nie |
||||||||
| 01 | Rura pośrednia | 1 | 18305A2C2B5 | Shop at ECS Tuning | ||||||
| 02 | Tłumik tylny z przepust. spalin | 1 | 18305A2C2B4 | Shop at ECS Tuning | ||||||
| 03 | Tulejka mocująca | D=80 X 90MM | 2 | 18307560815 | Shop at ECS Tuning | |||||
| 04 | Tłumik drgań | 68HZ | 1 | 18305A35EB2 | Shop at ECS Tuning | |||||
| 05 | Część nie jest dostępna oddzielnie | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 06 | Uchwyt tłumika tylnego, przedni | 2 | 18308635586 | Shop at ECS Tuning | ||||||
| 07 | Wspornik wahliwy | 2 | 18308635587 | Shop at ECS Tuning | ||||||
| 08 | Nakrętka z kołnierzem | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 09 | Napęd nastawczy przepustnicy spalin | 1 | 18305A20EA4 | Shop at ECS Tuning | ||||||
| 10 | Sprężyna połączeniowa | 1 | 18308472303 | Shop at ECS Tuning | ||||||
| 11 | Śruba sześciokątna | M6X16 | 2 | 18308623584 | Shop at ECS Tuning | |||||
