Zestaw napr. tulei do wsp. czuj. spalin for BMW 3 Series E46 318i

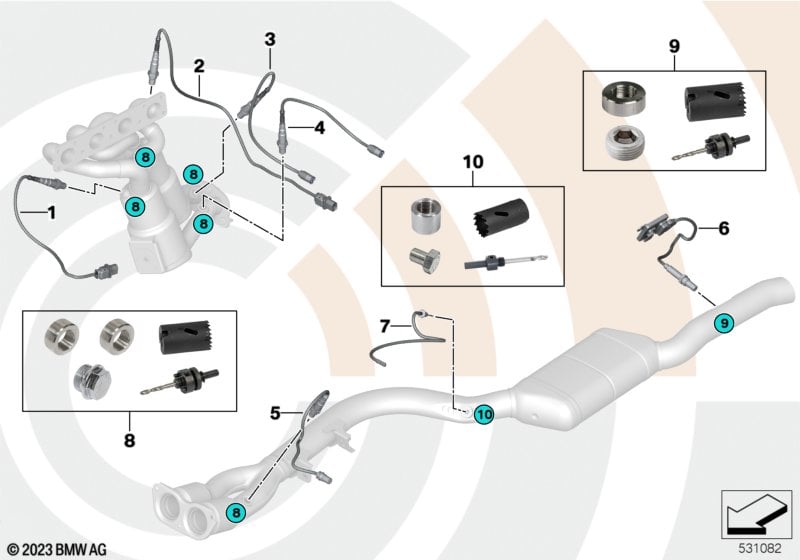

This Zestaw napr. tulei do wsp. czuj. spalin technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sonda lambda, regulacyjna | L=360MM | 1 | 11787512975 | $215.65 | Shop at ECS Tuning | ||||
| 02 | Sonda lambda, regulacyjna | L=360MM | 1 | 11787512976 | Shop at ECS Tuning | |||||
| 03 | Sonda monitor. lambda | L=450MM | 1 | 11787506539 | $215.65 | Shop at ECS Tuning | ||||
| Dla samochodów z Redukcja spalin EU 2 lub Redukcja spalin EU 3 |
S168A=Tak S169A=Tak |
|||||||||
| 04 | Sonda lambda, regulacyjna | L=360MM | 1 | 11787512975 | $215.65 | Shop at ECS Tuning | ||||
| 05 | Sonda monitor. lambda | L=765MM | 1 | 11787506531 | Shop at ECS Tuning | |||||
| Przestrzegaj instrukcji naprawy. Nie stosować w odlewie metalowym! Stosować tylko w przypadku pozycji montażu 90°! Precyzyjnie przywrócić pozycjonowanie! |
||||||||||
| 08 | Tuleja do wspawania sondy lambda | VALUE PARTS | 1 | 18305A93365 | Shop at ECS Tuning | |||||
