Zawieszenie silnika for BMW 7 Series E65 745i (2003)

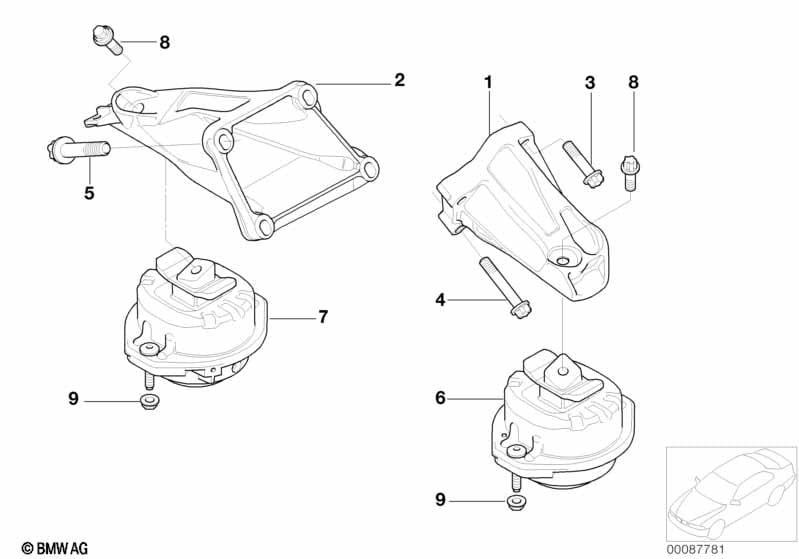

This Zawieszenie silnika technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wspornik silnika lewy | 1 | 22116754615 | $34.51 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 02 | Wspornik silnika prawy | 1 | 22116754616 | $34.51 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Śruba torx | M10X40-Z1-10.9 | 2 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Okrągłe śruby imbusowe | BM10X60-U1-8.8- | 2 | 07119908537 | Shop at ECS Tuning | |||||
| 05 | Śruba torx | M10X40-Z1-10.9 | 4 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Zawieszenie silnika lewe | 1 | 22116769185 | $92.50 | +podst | Shop at ECS Tuning | ||||
| Konieczne do naprawy | ||||||||||
| -- | Nakrętka sześciokątna | M8-ZNS3 | 1 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Zawieszenie silnika prawe | 1 | 22116769186 | $92.50 | +podst | Shop at ECS Tuning | ||||
| Konieczne do naprawy | ||||||||||
| -- | Śruba torx | M10X40-Z1-10.9 | 1 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| -- | Nakrętka sześciokątna | M8-ZNS3 | 1 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Śruba torx | M10X40-Z1-10.9 | 2 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| 09 | Nakrętka sześciokątna | M8-ZNS3 | 4 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Zawieszenie silnika?
- This technical diagram illustrates the Zawieszenie silnika within the Zawieszenie silnika/ skrzyni biegów group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Wspornik silnika lewy (Part #22116754615).
- Which models use the hardware listed in this Zawieszenie silnika?
- The hardware and components featured in the Zawieszenie silnika are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Wspornik silnika lewy (22116754615) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zawieszenie silnika assembly?
- Each item in the Zawieszenie silnika corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Wspornik silnika lewy by locating its position on the schematic, which then links to the official BMW part number 22116754615 for the Zawieszenie silnika/ skrzyni biegów section.
