Skrzynia bieg., mocowanie/Elementy dod. for BMW 1 Series F20 120d (2013)

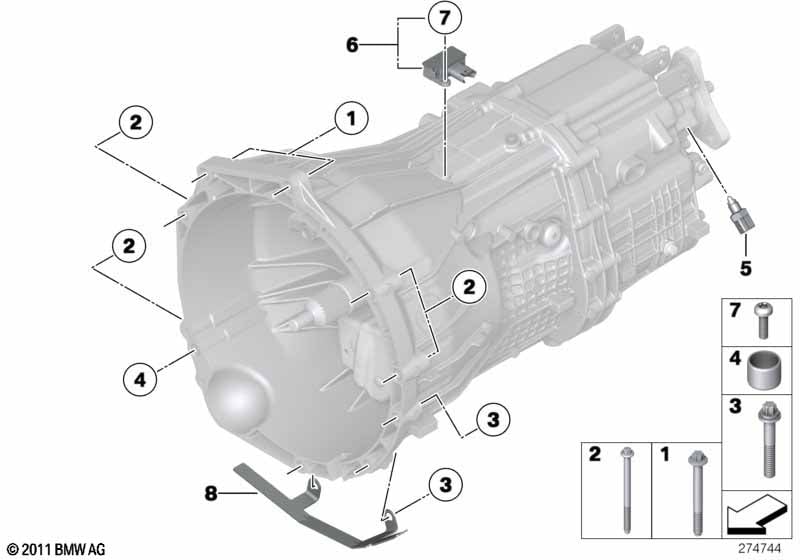

This Skrzynia bieg., mocowanie/Elementy dod. technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Śruba torx | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Śruba torx | M12X100-8.8ZNS3 | 4 | 23007565047 | Shop at ECS Tuning | |||||
| 03 | Śruba | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Tulejka pasowana | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Włącznik świateł wstecznego biegu | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning | ||||
| 06 | Czujnik biegu jałowego | 1 | 23147606188 | Shop at ECS Tuning | ||||||
| tylko w połączeniu z | ||||||||||
| -- | Uszczelnienie przewodu pojedynczego | 0.5-1.0MM² GN | 1 | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Śruba Torx hermetyzowana | M5X12-8.8 ZNS3 | 2 | 23147576178 | Shop at ECS Tuning | |||||
| -- | Obudowa gniazda | 4-POLIG | 1 | 12527513331 | $2.47 | Shop at ECS Tuning | ||||
| -- | Styk gniazda MCON 1,2 ELA | 1,0-1,5MM² SN | 1 | 12527545855 | $0.50 | Shop at ECS Tuning | ||||
| 07 | Śruba Torx hermetyzowana | M5X12-8.8 ZNS3 | 1 | 06/2015 | 23147576178 | Shop at ECS Tuning | ||||
| 07 | Śruba ISA | M5X12-8.8-MK | 1 | 23149908749 | Shop at ECS Tuning | |||||
| 08 | Uchwyt osłony akust. | 1 | 11148517182 | Shop at ECS Tuning | ||||||
