ZF 4HP22/24 Części obudowy/Miska olej. for BMW 5 Series E28 535i (1987)

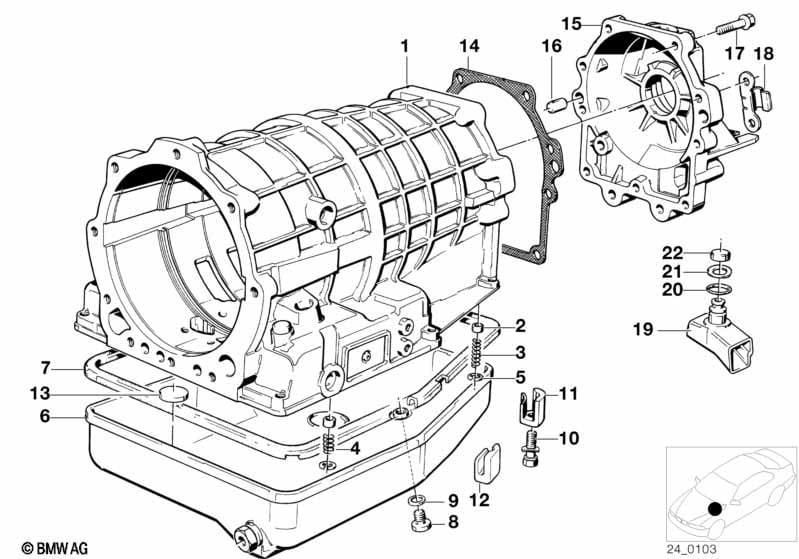

This ZF 4HP22/24 Części obudowy/Miska olej. technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Obudowa przekładni | 1 | 24111217343 | $1478.70 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Tuleja | 1 | 24111216253 | $2.77 | Shop at ECS Tuning | |||||
| 02 | Tuleja | 8 | 24341606168 | $4.39 | Shop at ECS Tuning | |||||
| 03 | Sprężyna naciskowa | D=1,0/L=42,2 | 4 | 24111215487 | $1.68 | Shop at ECS Tuning | ||||
| 05 | Pierścień zabezpieczający | 10X1 | 8 | 24111218535 | $1.02 | Shop at ECS Tuning | ||||
| 06 | Misa olejowa | 1 | 24111215935 | $130.02 | Shop at ECS Tuning | |||||
| 07 | Uszczelka | 1 | 24111217082 | $14.84 | Shop at ECS Tuning | |||||
| 08 | Śruba z pierścieniem uszcz. | M10X1 | 1 | 24111421387 | $3.23 | Shop at ECS Tuning | ||||
| 09 | Pierścień uszczelniający | A10X14 | 1 | 24111421508 | $1.81 | Shop at ECS Tuning | ||||
| 10 | Śruba z podkładką | M6X37 | 6 | 24111217130 | $1.58 | Shop at ECS Tuning | ||||
| 11 | Wspornik | 4 | 24111218679 | $4.47 | Shop at ECS Tuning | |||||
| 12 | Wspornik | 2 | 24111217129 | $6.52 | Shop at ECS Tuning | |||||
| 13 | Magnes | 1 | 24111206468 | $4.62 | Shop at ECS Tuning | |||||
| 14 | Uszczelka | 1 | 24111215463 | $1.65 | Shop at ECS Tuning | |||||
| 15 | Przedłużenie skrzyni biegów | 1 | 09/1983 | 24111215727 | Zakończono | Shop at ECS Tuning | ||||
| 16 | Kołek walcowy | 10X16 | 2 | 24111215462 | $1.84 | Zakończono | Shop at ECS Tuning | |||
| 17 | Śruba z podkładką | M8X32-Z3 | 9 | 07119915097 | Zakończono | Shop at ECS Tuning | ||||
| 19 | Zawór odpowietrzający | 1 | 24111218007 | $10.21 | Zakończono | Shop at ECS Tuning | ||||
| 20 | O-Ring | 1 | 24111217139 | $3.13 | Shop at ECS Tuning | |||||
| 21 | Podkładka zabezpieczająca | 1 | 24111216347 | $1.30 | Zakończono | Shop at ECS Tuning | ||||
| 22 | Pokrywa | 1 | 24111205976 | $2.32 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
