A5S360R/390R Odbiór napędu for BMW 3 Series E46 318i (2003)

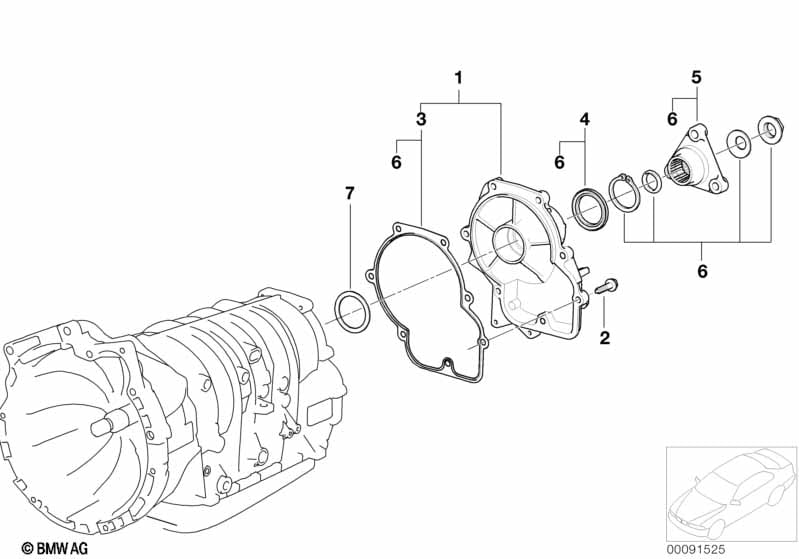

This A5S360R/390R Odbiór napędu technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zestaw naprawczy pokrywy wyjściowej | 1 | 24117557048 | $292.03 | Shop at ECS Tuning | |||||
| 02 | Śruba sześciokątna | M8X33 | 7 | 24137533717 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Zestaw nap. uszcz. pokr. wyjściowej | 1 | 24137557072 | $34.57 | Shop at ECS Tuning | |||||
| 04 | Zest. napr. pierścień uszczeln. wału | 1 | 24137514548 | $32.17 | Shop at ECS Tuning | |||||
| 05 | Zst napr tarczy napędzanej automat SB | 1 | 24217568563 | $178.72 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Zest. napr. nakr. kołnierza wyjściowego | 1 | 24217513337 | $17.48 | Shop at ECS Tuning | |||||
| 07 | Kpl. podkładek dystansowych | 1 | 24217509039 | $97.94 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
