Skrzynia biegów, mocowanie for BMW 7 Series E65 745i (2003)

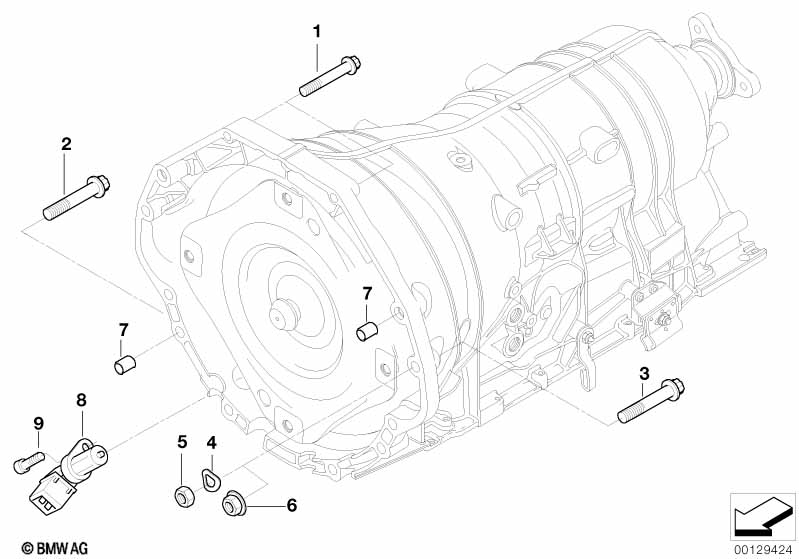

This Skrzynia biegów, mocowanie technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Śruba | M8X50-8.8-ZNS3 | 2 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 02 | Śruba torx | M10X55-8.8 ZNS3 | 8 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 03 | Śruba torx | M10X55-8.8 ZNS3 | 2 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 06 | Nakrętka sześciokątna | M10-10-ZNS3 | 2 | 07/2002 | 07119905032 | $0.71 | Shop at ECS Tuning | |||
| 07 | Tulejka pasowana | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Czujnik prędk. obrotowej wału korbowego | 1 | 06/2006 | 13627639278 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Opaska kablowa niebieska | 4,6X200 | 2 | 06/2006 | 61137711799 | Shop at ECS Tuning | ||||
| -- | Adapter czujnika wału korb. | 1 | 06/2006 | 12517567686 | Shop at ECS Tuning | |||||
| 09 | Okrągłe śruby imbusowe | M6X16-ZNNIV SI | 1 | 07119907463 | Shop at ECS Tuning | |||||
