Odryglowanie awaryjne for BMW 7 Series E65 745i (2003)

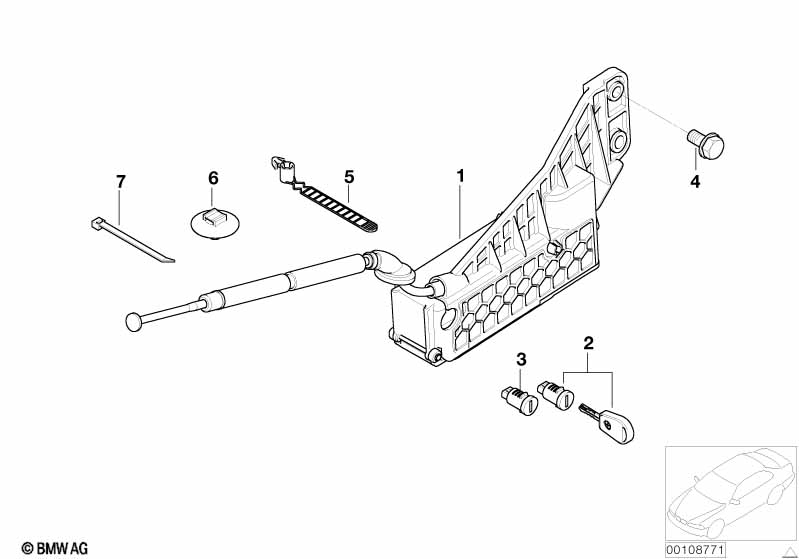

This Odryglowanie awaryjne technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mechanizm awaryjny | 1 | 24507573346 | $129.62 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Zestaw naprawczy wkładu zamka | 1 | 51167001461 | $41.73 | Shop at ECS Tuning | |||||
| 03 | Zestaw naprawczy wkładu zamka | 1 | 51167001461 | $41.73 | Shop at ECS Tuning | |||||
| 03 | Wkład zamka, kodowany | 1 | 51168268260 | $71.95 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Śruba z podkładką | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Opaska kablowa | L=119MM | 1 | 61138357028 | Shop at ECS Tuning | |||||
| 06 | Przycisk | 1 | 51481900729 | $0.50 | Shop at ECS Tuning | |||||
| 07 | Opaska kablowa | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
