GA6HP26Z Elementy przełączeniowe for BMW 7 Series E65 745i (2003)

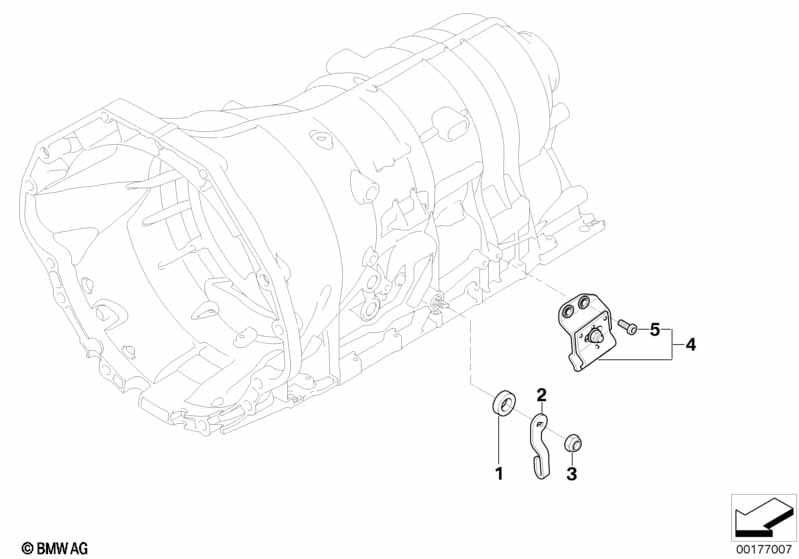

This GA6HP26Z Elementy przełączeniowe technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pierścień uszczelniający | 10X18X5 | 1 | 24147571213 | $5.20 | Shop at ECS Tuning | ||||
| 02 | Dźwignia | 1 | 24147519414 | $4.89 | Shop at ECS Tuning | |||||
| 03 | Nakrętka sześciokątna | M8X1 | 1 | 24147571207 | $1.15 | Shop at ECS Tuning | ||||
| 04 | Kpl. uchwytów cięgieł rozł. | 1 | 24147588888 | $18.76 | Shop at ECS Tuning | |||||
| 05 | Śruba torx | M6X20 | 2 | 24147571249 | $1.77 | Shop at ECS Tuning | ||||
| pasuje tylko do uchwytów cięgieł z gumowym elementem |
||||||||||
| 05 | Śruba torx | M6X14 | 2 | 24147515904 | $1.77 | Shop at ECS Tuning | ||||
| pasuje tylko do uchwytów cięgieł bez gumowego elementu |
||||||||||
