GA6HP26Z Odbiór napędu for BMW 7 Series E65 745i (2003)

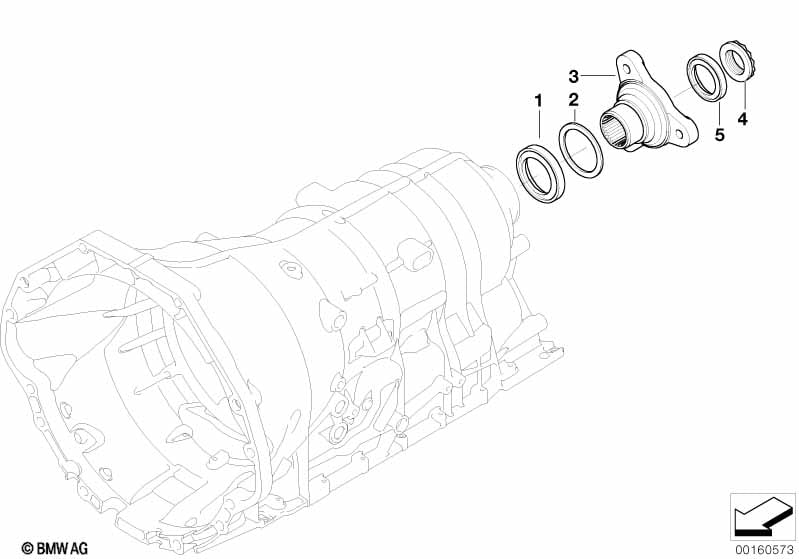

This GA6HP26Z Odbiór napędu technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pierścień uszczelniający | 44X72X8 | 1 | 24137519344 | $17.12 | Shop at ECS Tuning | ||||
| 02 | Tarcza wyrównawcza | 1 | 09/2001 | 24207521972 | $7.33 | Shop at ECS Tuning | ||||
| 03 | Kołnierz wychodzący | 1 | 24007588767 | Shop at ECS Tuning | ||||||
| 04 | Nakrętka z kołnierzem | M27X1,5 | 1 | 24207588761 | Shop at ECS Tuning | |||||
| 05 | Pierścień uszczelniający | 28X35,5X5,2 | 1 | 09/2002 | 24207588763 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i GA6HP26Z Odbiór napędu?
- This technical diagram illustrates the GA6HP26Z Odbiór napędu within the Skrzynia biegów, automatyczna group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Pierścień uszczelniający (Part #24137519344).
- Which models use the hardware listed in this GA6HP26Z Odbiór napędu?
- The hardware and components featured in the GA6HP26Z Odbiór napędu are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Pierścień uszczelniający (24137519344) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA6HP26Z Odbiór napędu assembly?
- Each item in the GA6HP26Z Odbiór napędu corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Pierścień uszczelniający by locating its position on the schematic, which then links to the official BMW part number 24137519344 for the Skrzynia biegów, automatyczna section.
