GA6HP26Z Mechatronika for BMW 7 Series E65 745i (2003)

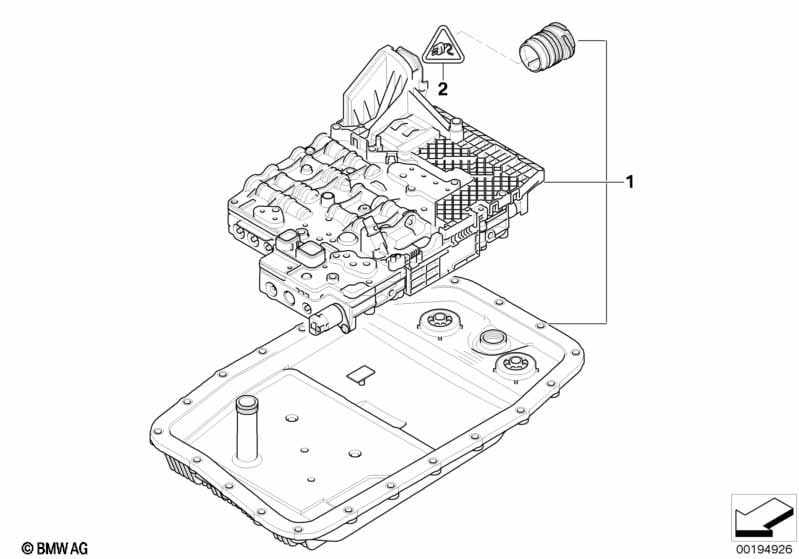

This GA6HP26Z Mechatronika technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | REMAN zestaw naprawczy mechatroniki | REMAN | 1 | 09/2003 | 24347571214 | $2919.27 | +podst | Shop at ECS Tuning | ||
| 01 | Zestaw naprawczy mechatroniki | 1 | 09/2003 | 24348671610 | Shop at ECS Tuning | |||||
| 02 | Obudowa gniazda | 1 | 12527503442 | $7.82 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Wtyk z przewodem | 0,35-0,5 MM² AG | 16 | 12521436205 | $0.50 | Shop at ECS Tuning | ||||
| -- | Wtyk z przewodem | 0,5-1,0 MM² AG | 16 | 12521436206 | $0.50 | Shop at ECS Tuning | ||||
| -- | Osłonka | 1 | 12527522996 | $1.92 | Shop at ECS Tuning | |||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
