GA6F21WA - Sterownik i elementy dod. for BMW MINI R56 One (2008)

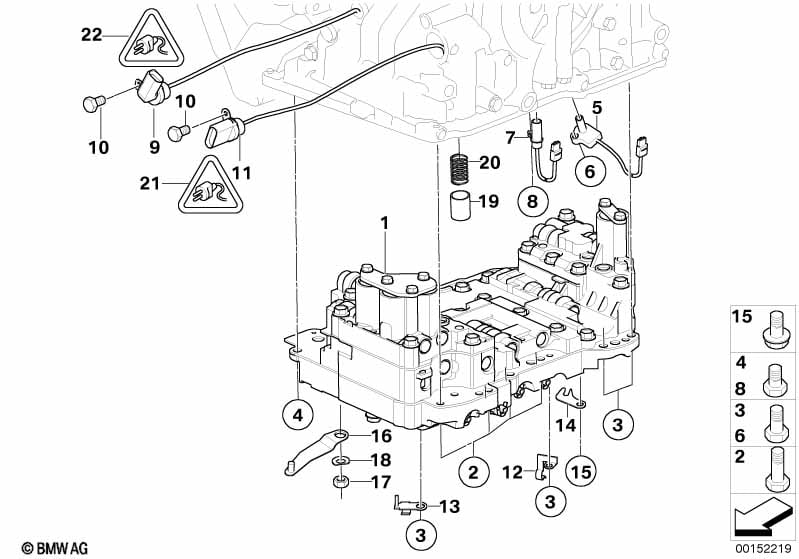

This GA6F21WA - Sterownik i elementy dod. technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sterownik | 1 | 24347603648 | Shop at ECS Tuning | ||||||
| 01 | Sterownik | 1 | 24349455971 | Zakończono | Shop at ECS Tuning | |||||
| 02 | Śruba sześciokątna | M6X28 | 4 | 24347551104 | $0.75 | Shop at ECS Tuning | ||||
| 03 | Śruba sześciokątna | M6X21 | 6 | 24347551105 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Śruba sześciokątna | M6X16 | 2 | 24347551106 | $0.75 | Shop at ECS Tuning | ||||
| 05 | Czujnik prędkości obrotowej, wejście | 1 | 24157551107 | $281.83 | Shop at ECS Tuning | |||||
| 06 | Śruba sześciokątna | M6X21 | 1 | 24347551105 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Czujnik prędkości obrotowej, wyjście | 1 | 24157551108 | $154.63 | Shop at ECS Tuning | |||||
| 08 | Śruba sześciokątna | M5X18 | 1 | 24157551109 | $0.39 | Shop at ECS Tuning | ||||
| 09 | Wiązka przew. z czujnikiem temperatury | 6 PINS | 1 | 24367551110 | $170.84 | Shop at ECS Tuning | ||||
| 10 | Śruba sześciokątna | M6X12 | 2 | 24117570796 | $0.44 | Shop at ECS Tuning | ||||
| 11 | Wiązka przewodów | 14 PINS | 1 | 24367551111 | $155.49 | Shop at ECS Tuning | ||||
| 12 | Obejma | 1 | 24367551995 | $2.98 | Shop at ECS Tuning | |||||
| 13 | Obejma | 1 | 24237551996 | $2.75 | Shop at ECS Tuning | |||||
| 14 | Obejma | 1 | 24367551997 | $1.54 | Shop at ECS Tuning | |||||
| 15 | Śruba sześciokątna | M6X14 | 1 | 24347551088 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Dźwignia | 1 | 24527551113 | $10.31 | Shop at ECS Tuning | |||||
| 17 | Nakrętka | M6 | 1 | 24527551114 | $0.39 | Shop at ECS Tuning | ||||
| 18 | Podkładka | 11X6,4X0,8 | 1 | 24527551115 | $2.07 | Shop at ECS Tuning | ||||
| 19 | Tłok | 1 | 24527551116 | $11.89 | Shop at ECS Tuning | |||||
| 20 | Sprężyna naciskowa | 1 | 24527551117 | $4.73 | Shop at ECS Tuning | |||||
| 21 | Obudowa gniazda | 14 POL. | 1 | 24007545730 | $4.38 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Uszczelnienie przewodu pojedynczego | 0,50-0,75 MM² | 1 | 12527551596 | $0.22 | Shop at ECS Tuning | ||||
| -- | Styk sprężynowy płaski Microtimer ELA | 0,5-1,0 MM² SN | 1 | 12517548501 | $0.50 | Shop at ECS Tuning | ||||
| 22 | Obudowa gniazda | 8 POL. | 1 | 24007545731 | $3.55 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Uszczelnienie przewodu pojedynczego | 0,50-0,75 MM² | 1 | 12527551596 | $0.22 | Shop at ECS Tuning | ||||
| -- | Styk sprężynowy płaski Microtimer ELA | 0,5-1,0 MM² SN | 1 | 12517548501 | $0.50 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 One GA6F21WA - Sterownik i elementy dod.?
- This technical diagram illustrates the GA6F21WA - Sterownik i elementy dod. within the Skrzynia biegów, automatyczna group for the MINI R56 One produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Sterownik (Part #24347603648).
- Which models use the hardware listed in this GA6F21WA - Sterownik i elementy dod.?
- The hardware and components featured in the GA6F21WA - Sterownik i elementy dod. are specific to the MINI R56 One produced during 2008. These technical specifications ensure that parts like the Sterownik (24347603648) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA6F21WA - Sterownik i elementy dod. assembly?
- Each item in the GA6F21WA - Sterownik i elementy dod. corresponds to the numbered list below the illustration. For the MINI R56 One, you can identify the Sterownik by locating its position on the schematic, which then links to the official BMW part number 24347603648 for the Skrzynia biegów, automatyczna section.
