Stabilizator przedni for BMW 3 Series E36 320i (1994)

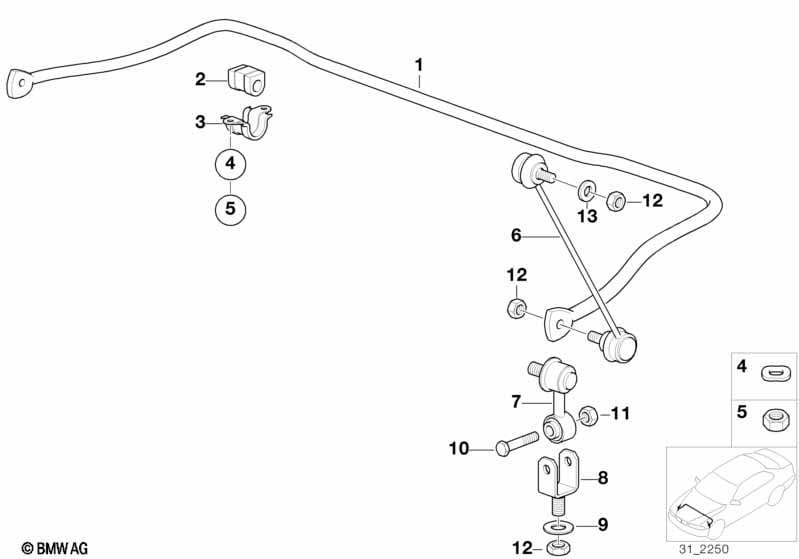

This Stabilizator przedni technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizator przedni | D=24MM | 1 | 06/1992 | 31351090858 | $164.43 | Shop at ECS Tuning | |||
| Dla samochodów z M Podwozie sportowe z obniż. zawiesz. lub Rama Motorsport Seria indyw. Avus |
=Tak =Tak |
|||||||||
| 01 | Stabilizator przedni | D=25,5MM | 1 | 10/1991 | 31351090182 | $164.43 | Shop at ECS Tuning | |||
| 02 | Poduszka gumowa stabilizatora | D=24MM | 2 | 06/1992 | 31351090263 | $17.00 | Zakończono | Shop at ECS Tuning | ||
| Dla samochodów z M Podwozie sportowe z obniż. zawiesz. lub Rama Motorsport Seria indyw. Avus |
=Tak =Tak |
|||||||||
| 02 | Poduszka gumowa stabilizatora | D=25,5MM | 2 | 10/1991 | 31351090268 | $17.00 | Shop at ECS Tuning | |||
| 03 | Kabłąk mocujący stabilizator | 2 | 31351131622 | $6.27 | Shop at ECS Tuning | |||||
| 04 | Podkładka sprężysta | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Nakrętka sześciokątna | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Łącznik stabilizatora | 2 | 10/1991 | 31351091764 | $49.95 | Shop at ECS Tuning | ||||
| 08 | Uchwyt el. wahliwego | 2 | 10/1991 | 31351127263 | $6.29 | Shop at ECS Tuning | ||||
| 09 | Podkładka | A10,5X22 | 2 | 10/1991 | 31111114348 | $0.67 | Shop at ECS Tuning | |||
| 10 | Śruba sześciokątna | M8X45-8.8-ZNS3 | 2 | 10/1991 | 07119902955 | $0.62 | Shop at ECS Tuning | |||
| 11 | Nakrętka samozabezpieczająca | M8 | 2 | 10/1991 | 07129922716 | $0.36 | Shop at ECS Tuning | |||
| 12 | Nakrętka samozabezpieczająca | M10 | 4 | 05/1997 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
Uwagi
- Zakończono = część wycofana z produkcji.
