Łożysko oporowe/podkł. spręż./Elem. dod. for BMW 7 Series E65 745i (2003)

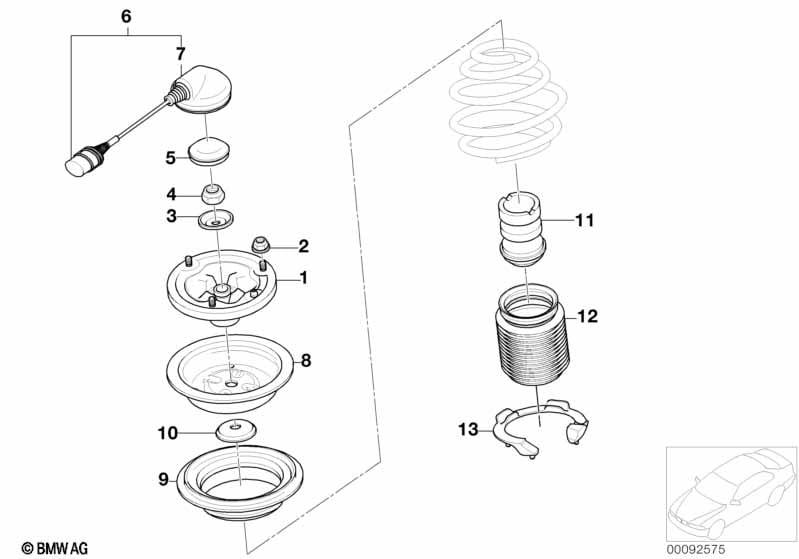

This Łożysko oporowe/podkł. spręż./Elem. dod. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gniazdo amortyzatora | 2 | 31336779612 | $62.83 | Shop at ECS Tuning | |||||
| 02 | Nakrętka samozabezp. z kołnierzem | M8-8 ZNS3 | 6 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Tarcza przegubowa | 2 | 31306779414 | $5.25 | Shop at ECS Tuning | |||||
| 04 | Nakrętka samozabezp. | M16X1.5-05 ZNS3 | 2 | 31106779396 | $1.85 | Shop at ECS Tuning | ||||
| 05 | Osłonka | 2 | 31331090616 | $2.91 | Shop at ECS Tuning | |||||
| Dla samochodów z EDC |
S223A=Tak |
|||||||||
| 06 | Przewód połączeniowy EDC przedni | 2 | 31316752606 | $34.29 | Shop at ECS Tuning | |||||
| 07 | Osłonka | 2 | 31316752607 | $4.76 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Krążek sprężyny górny z łoż. klatk. | 2 | 31331090612 | $11.70 | Shop at ECS Tuning | |||||
| 09 | Podkładka sprężyny górna | 2 | 31331091233 | $5.85 | Shop at ECS Tuning | |||||
| 10 | Podkładka | 2 | 31332283038 | $1.59 | Shop at ECS Tuning | |||||
| 11 | Amortyzator dodatkowy przedni | 2 | 31336758284 | $19.27 | Shop at ECS Tuning | |||||
| Dla samochodów z EDC |
S223A=Tak |
|||||||||
| 11 | Amortyzator dodatkowy przedni | 2 | 31331091887 | $19.47 | Shop at ECS Tuning | |||||
| Dla samochodów z Sportowe dostosowanie podwozia |
S226A=Tak |
|||||||||
| 11 | Amortyzator dodatkowy przedni | 2 | 03/2003 | 31331138814 | $18.02 | Shop at ECS Tuning | ||||
| 12 | Osłona gumowa | 2 | 31331096309 | $12.83 | Shop at ECS Tuning | |||||
| 13 | Podkładka sprężyny dolna | 2 | 31336752601 | $6.98 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
