Stabilizator przedni / Dynamic Drive for BMW 7 Series E65 745i (2003)

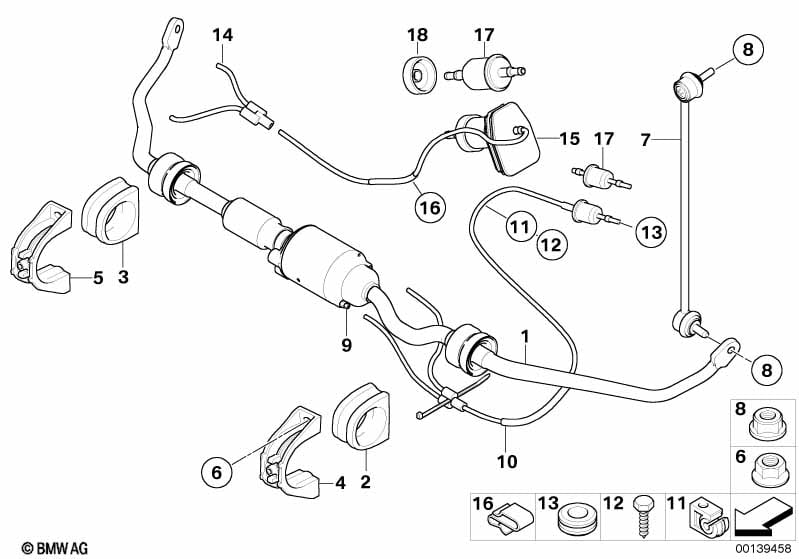

This Stabilizator przedni / Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Dynamic Drive |
S229A=Tak |
||||||||
| 01 | Aktywny stabilizator | 1 | 37116780009 | $1460.78 | Shop at ECS Tuning | |||||
| 02 | Poduszka gumowa stabilizatora | 1 | 31356753913 | $15.43 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Narzędzie montażowe | 250ML | 1 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | Poduszka gumowa stabilizatora | 1 | 31356753913 | $15.43 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Narzędzie montażowe | 250ML | 1 | 83192405829 | Shop at ECS Tuning | |||||
| 04 | Kabłąk mocujący stabilizator | 1 | 31356757099 | $16.92 | Shop at ECS Tuning | |||||
| 05 | Uchwyt mocuj. stabilizator przedni pr. | 1 | 31356757100 | $16.92 | Shop at ECS Tuning | |||||
| 06 | Nakrętka samozabezp. z kołnierzem | M8-8 ZNS3 | 4 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Łącznik stabilizatora przedn. lewy | 1 | 31306781545 | $34.05 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| 07 | Łącznik stabilizatora przedn. prawy | 1 | 31306781546 | $34.05 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Nakrętka z podkładką | M10 ZNS3 | 2 | 31356757707 | $1.00 | Shop at ECS Tuning | ||||
| 08 | Nakrętka z podkładką | M10 ZNS3 | 4 | 31356757707 | $1.00 | Shop at ECS Tuning | ||||
| 09 | Zawór odpowietrzający | M10X1 | 2 | 37106759856 | $85.82 | Shop at ECS Tuning | ||||
| 14 | Przewód rozdzielacza | 1 | 06/2003 | 37106762513 | $33.20 | Shop at ECS Tuning | ||||
| 15 | Przewód odpowietrzający | 1 | 06/2003 | 37106761635 | $107.63 | Shop at ECS Tuning | ||||
| 16 | Klamra | A=3,5 - 6,0MM | 1 | 06/2003 | 07147547239 | $0.58 | Shop at ECS Tuning | |||
| 17 | Filtr paliwa | 6+8 MM | 1 | 13321277497 | $2.78 | Shop at ECS Tuning | ||||
| 18 | Końcówka przewodu | 1 | 61131350914 | $1.15 | Shop at ECS Tuning | |||||
