Blok zaworowy i elem. dod./Dynamic Drive for BMW 7 Series E65 745i (2003)

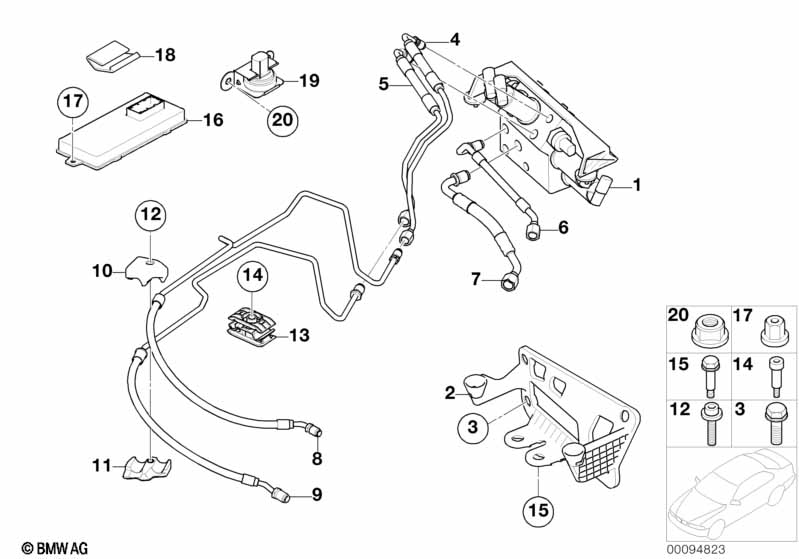

This Blok zaworowy i elem. dod./Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blok zaworowy | 1 | 37206781487 | $1010.60 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Uchwyt nadwozia - blok zaworowy | 1 | 37206753001 | $48.40 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 03 | Śruba z podkładką | M6X30-ZNNIV SI | 4 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 04 | Przewód ciśnieniowy bloku zaworów | M14X1,5 | 1 | 37136753029 | $44.17 | Shop at ECS Tuning | ||||
| 05 | Przewód ciśnieniowy bloku zaworów | M16X1,5 | 1 | 37136753030 | $44.17 | Shop at ECS Tuning | ||||
| 06 | Przewód elastyczny ciśnieniowy | M16X1,5 | 1 | 37136753033 | $44.17 | Zakończono | Shop at ECS Tuning | |||
| 07 | Przewód elastyczny ciśnieniowy | M18X1,5 | 1 | 37136753034 | $44.17 | Shop at ECS Tuning | ||||
| 08 | Przewód ciśnieniowy, silnik | M14X1,5 | 1 | 37136762034 | $118.90 | Shop at ECS Tuning | ||||
| 09 | Przewód ciśnieniowy, silnik | M16X1,5 | 1 | 37136762035 | $118.90 | Shop at ECS Tuning | ||||
| 10 | Uchwyt przewodu | 1 | 37206755855 | $6.67 | Shop at ECS Tuning | |||||
| 11 | Uchwyt przewodu | 1 | 37206755856 | $6.67 | Shop at ECS Tuning | |||||
| 12 | Śruba ISA z podkładką | M6X45-U0-8.8 | 1 | 07129906579 | Shop at ECS Tuning | |||||
| 13 | Uchwyt przewodu | 2 | 37206753048 | $6.38 | Shop at ECS Tuning | |||||
| 14 | Śruba z kołnierzem | M6X37 ZNS3 | 2 | 37206779605 | $2.57 | Shop at ECS Tuning | ||||
| 15 | Śruba z kołnierzem | M6X31,7 ZNS3 | 2 | 37206777944 | $2.17 | Shop at ECS Tuning | ||||
| 16 | Sterownik Dynamic Drive | 1 | 37146786139 | $657.17 | Shop at ECS Tuning | |||||
| 17 | Nakrętka | M6 ZNT | 1 | 07146982788 | $0.20 | Shop at ECS Tuning | ||||
| 18 | Zaczep | 1 | 37146752824 | $0.67 | Shop at ECS Tuning | |||||
| 19 | Czujnik przyspieszenia | 1 | 37146781407 | $102.03 | Shop at ECS Tuning | |||||
| 20 | Nakrętka z podkładką | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
