Hydr.układ kier.-pompa łopatk./koz. łoż. for BMW 3 Series E21 323i

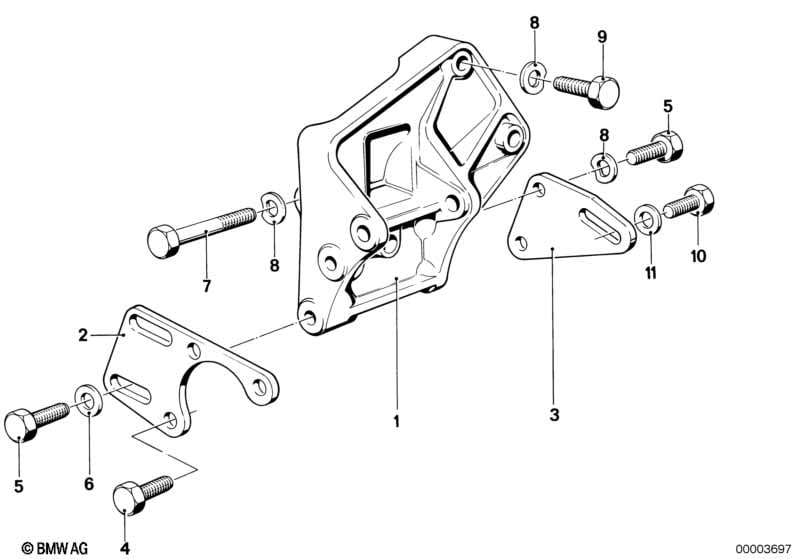

This Hydr.układ kier.-pompa łopatk./koz. łoż. technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wspornik | 1 | 04/1981 | 32411264642 | $73.84 | Shop at ECS Tuning | ||||
| 02 | Płyta mocująca | 1 | 04/1981 | 32411276637 | $11.61 | Shop at ECS Tuning | ||||
| 03 | Uchwyt | 1 | 04/1981 | 32411260806 | Shop at ECS Tuning | |||||
| 04 | Śruba sześciokątna | M8X20-ZNNIV SI | 4 | 04/1981 | 07119903039 | Shop at ECS Tuning | ||||
| 05 | Śruba sześciokątna | M8X25-8.8-ZNNIV | 4 | 04/1981 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 05 | Śruba sześciokątna | M8X25 | 4 | 04/1981 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 06 | Podkładka | A8,4X25 | 2 | 04/1981 | 07147201571 | $0.20 | Shop at ECS Tuning | |||
| 08 | Podkładka sprężysta | 8,4X15-ZNS3 | 4 | 04/1981 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 09 | Śruba sześciokątna | M8X30-ZN | 2 | 04/1981 | 07119913662 | $0.22 | Shop at ECS Tuning | |||
| 09 | Śruba sześciokątna | M8X30 | 2 | 04/1981 | 07119913664 | $0.47 | Shop at ECS Tuning | |||
| 10 | Śruba sześciokątna | M8X22-8.8-ZNS3 | 1 | 04/1981 | 07119904040 | Shop at ECS Tuning | ||||
| 11 | Podkładka | 1 | 04/1981 | 11614000131 | $1.80 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
