Przekładnia układu kierown., elem. poj. for BMW 2500-3.3Li 3.0S

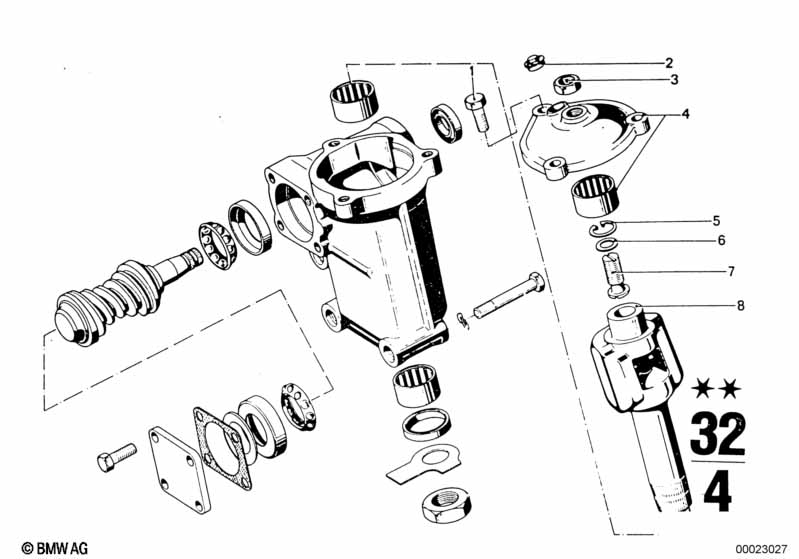

This Przekładnia układu kierown., elem. poj. technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Śruba z podkładką | M8X25-Z3 | 3 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 02 | Zaślepka | 1 | 32111102781 | $9.48 | Shop at ECS Tuning | |||||
| 03 | Nakrętka sześciokątna | M12X1,5 | 1 | 07119921627 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Pierścień zabezpieczający | 1 | 32112670140 | Zakończono | Shop at ECS Tuning | |||||
| 06 | Podkładka | 2,200MM | 1 | 32112670144 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Podkładka | 2,250MM | 1 | 32112670145 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Podkładka | 2,300MM | 1 | 32112670146 | $3.94 | Zakończono | Shop at ECS Tuning | |||
| 06 | Podkładka | 2,350MM | 1 | 32112670147 | $3.94 | Zakończono | Shop at ECS Tuning | |||
| 06 | Podkładka | 2,400MM | 1 | 32112670148 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Podkładka | 2,45 | 1 | 32112670149 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Podkładka | 2,150MM | 1 | 32112670150 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Śruba nastawcza | 1 | 32112670142 | $5.67 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Wałek przekładni kierowniczej | 1 | 09/1973 | 02/1977 | 32111114274 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
