Drążki kierownicze/drążek kierowniczy for BMW 2500-3.3Li 3.0S

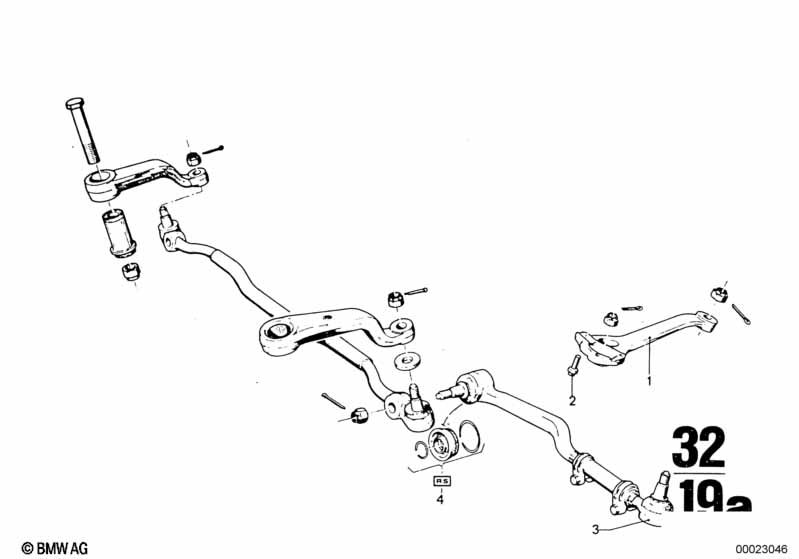

This Drążki kierownicze/drążek kierowniczy technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dźwignia zwrotnicza lewa | M 10 L=250,5 MM | 1 | 05/1971 | 09/1973 | 32211108352 | Zakończono | Shop at ECS Tuning | ||
| 01 | Dźwignia zwrotnicza prawa | M 10 L=250,5 MM | 1 | 05/1971 | 09/1973 | 32211108353 | Zakończono | Shop at ECS Tuning | ||
| 01 | Dźwignia zwrotnicza lewa | L=251,5MM | 1 | 09/1973 | 02/1977 | 32211111489 | Zakończono | Shop at ECS Tuning | ||
| 01 | Dźwignia zwrotnicza prawa | L=251,5MM | 1 | 09/1973 | 02/1977 | 32211111490 | Zakończono | Shop at ECS Tuning | ||
| 02 | Śruba sześciokątna | M 10 | 6 | 32211113179 | $5.12 | Zakończono | Shop at ECS Tuning | |||
| 03 | Przegub kulowy | 2 | 32211114843 | $41.23 | Shop at ECS Tuning | |||||
| 04 | Zestaw uszczelek przegubu kulowego | 4 | 32211112322 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Drążki kierownicze/drążek kierowniczy?
- This technical diagram illustrates the Drążki kierownicze/drążek kierowniczy within the Układ kierowniczy group for the 2500-3.3Li 3.0S. It provides a detailed exploded view of the components, identifying key parts such as the Dźwignia zwrotnicza lewa (Part #32211108352).
- Which models use the hardware listed in this Drążki kierownicze/drążek kierowniczy?
- The hardware and components featured in the Drążki kierownicze/drążek kierowniczy are specific to the 2500-3.3Li 3.0S. These technical specifications ensure that parts like the Dźwignia zwrotnicza lewa (32211108352) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drążki kierownicze/drążek kierowniczy assembly?
- Each item in the Drążki kierownicze/drążek kierowniczy corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Dźwignia zwrotnicza lewa by locating its position on the schematic, which then links to the official BMW part number 32211108352 for the Układ kierowniczy section.
