Kolumna kierownicza for BMW 2500-3.3Li 3.0S

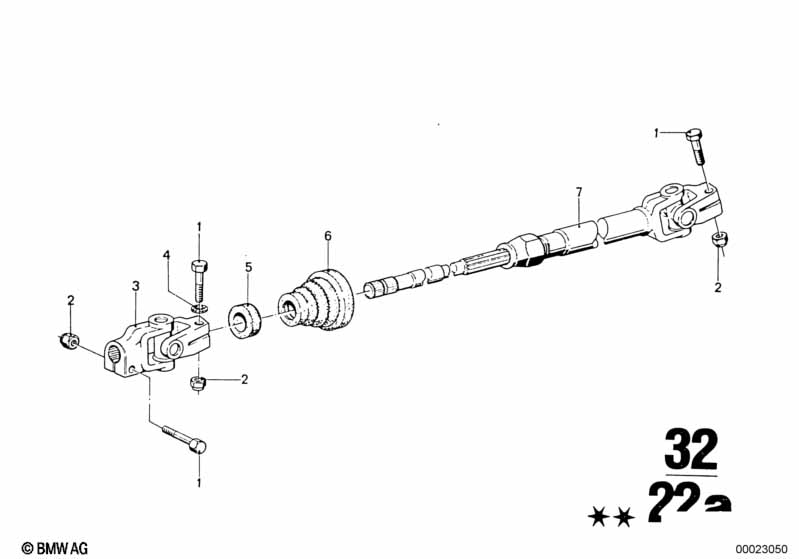

This Kolumna kierownicza technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Nakrętka samozabezpieczająca | M8 | 3 | 03/1987 | 07129922714 | $0.17 | Zakończono | Shop at ECS Tuning | ||
| tylko w połączeniu z | ||||||||||
| -- | Śruba z łbem walcowym | M8X30-8.8-ZNS | X | 03/1987 | 07119901025 | $0.47 | Shop at ECS Tuning | |||
| -- | Podkładka zębata | J8,2 | X | 03/1987 | 07119936207 | $0.07 | Shop at ECS Tuning | |||
| 02 | Nakrętka samozabezpieczająca | M8-8-ZNNI SI | 3 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Śruba z łbem walcowym | M8X30-8.8-ZNS | X | 07119901025 | $0.47 | Shop at ECS Tuning | ||||
| -- | Podkładka zębata | J8,2 | X | 07119936207 | $0.07 | Shop at ECS Tuning | ||||
| 03 | Przegub krzyżowy | 1 | 32311150761 | $93.52 | Zakończono | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Śruba z łbem walcowym | M8X30-8.8-ZNS | X | 07119901025 | $0.47 | Shop at ECS Tuning | ||||
| -- | Podkładka zębata | J8,2 | X | 07119936207 | $0.07 | Shop at ECS Tuning | ||||
| 03 | Przegub krzyżowy | 1 | 09/1973 | 02/1977 | 32311113257 | Zakończono | Shop at ECS Tuning | |||
| 06 | Osłona elastyczna | 1 | 09/1973 | 02/1977 | 32311104156 | $8.47 | Zakończono | Shop at ECS Tuning | ||
| 07 | Przegub kolumny kierowniczej dolny | 1 | 32311111965 | Zakończono | Shop at ECS Tuning | |||||
| 07 | Przegub kolumny kierowniczej dolny | 1 | 09/1973 | 02/1977 | 32311111964 | Zakończono | Shop at ECS Tuning | |||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Kolumna kierownicza?
- This technical diagram illustrates the Kolumna kierownicza within the Układ kierowniczy group for the 2500-3.3Li 3.0S. It provides a detailed exploded view of the components, identifying key parts such as the Nakrętka samozabezpieczająca (Part #07129922714).
- Which models use the hardware listed in this Kolumna kierownicza?
- The hardware and components featured in the Kolumna kierownicza are specific to the 2500-3.3Li 3.0S. These technical specifications ensure that parts like the Nakrętka samozabezpieczająca (07129922714) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kolumna kierownicza assembly?
- Each item in the Kolumna kierownicza corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Nakrętka samozabezpieczająca by locating its position on the schematic, which then links to the official BMW part number 07129922714 for the Układ kierowniczy section.
